ABV162451J | Panasonic

Miniature snap-action switche, On-Off, stranded wires, roller hinge lever, 1.18 N, 3 A/250 VAC, IP67, ABV162451J

Order No.: 34G4391
EAN: 4099889216394
MPN:
ABV162451J
ABV162451
Series: ABV
Panasonic

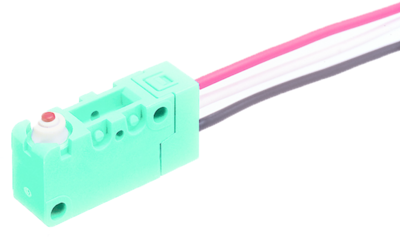

ABV162451J Panasonic Snap Action Switches
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Leadtime: 49 Weeks **
Total Price:
5.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
5.8786 €

Miniature-Switch, ABV162451J, Panasonic

Miniature-Switch, IP 67, Wire leads, SPST-NC, Simulated roller lever, 1,18N, Au-clad

Features

  • Integral construction of body and cover, sealed switches
  • Long life (Mechanical life: Min. 5 × 106)
  • Wide variation

Applications

  • Automotive
  • Agricultural machinery (Combine, Rice planting machine)
  • Ice maker, etc.
Technical specifications
Connection stranded wires
Design angled
Actuator roller hinge lever
actuating force 1.18 N
Shell Material PPS
Latching switching function On-Off
Breaking capacity 3 A/250 VAC
Switching point 18.5 mm ±1.2 mm
Protection class IP67
Logistics
Country of origin JP
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
