AEQ10410 | Panasonic

Name: Ultraminiature snap-action switche, On-On, solder connection, pin plunger, 1.2 N, 0.1 A/30 VDC, IP40, AEQ10410
Brand: Panasonic
SKU: 34G4736
Price: 3.55 EUR
Availability: OutOfStock

Ultraminiature snap-action switche, On-On, solder connection, pin plunger, 1.2 N, 0.1 A/30 VDC, IP40, AEQ10410

Order No.: 34G4736

EAN: 4099889216622

MPN:

AEQ10410

Series: AEQ1

Image may differ

Key Specification:

Latching switching function On-On

Actuator pin plunger

actuating force 1.2 N

Switching point 8.4 mm ±0.3 mm

Connection solder connection

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.5462 € *

Available: 0 pcs.

Leadtime: 12 Weeks **

Add to Cart

Total Price:

3.55 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

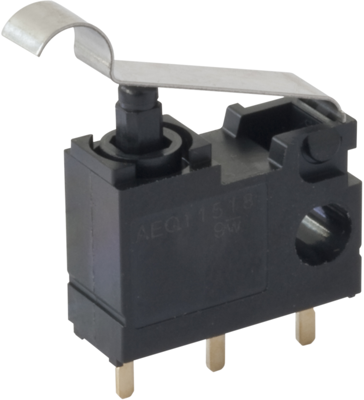

Ultraminiature-Switch, AEQ10410, PANASONIC

Ultraminiature-Switch, Low level Load, IP40, 3 mm mounting hole, boss type, solder terminal type, SPDT, PIN plunger.

Features

Ultra-long stroke
Silent operation
Household appliances and air purifiers for safety purpose

Technical specifications

	Connection	solder connection
	Design	straight
	Actuator	pin plunger
	actuating force	1.2 N
	Latching switching function	On-On
	Breaking capacity	0.1 A/30 VDC
	Switching point	8.4 mm ±0.3 mm
	Protection class	IP40
