AV4004J | Panasonic

Superminiature snap-action switche, On-On, solder connection, pin plunger, 0.98 N, 0.5 A/30 VDC, IP40, AV4004J

Order No.: 34G6726
EAN: 4099889218145
MPN:
AV4004J
AV4004
Series: AV4
Panasonic

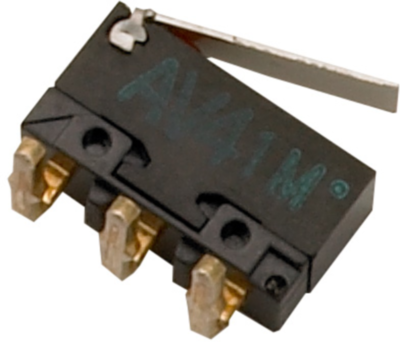

AV4004J Panasonic Snap Action Switches
Image may differ
Unit Price (€ / pc.)
1.9397 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
1.94 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
1.9397 €

Superminiature-Switch, AV4004J, PANASONIC

Superminiature-Switch, IP40, Solder terminal with mounting holes 1, 65 mm, Pin plunger, 0,98 N, Silver contact.

Features

  • Superminiature txpe, light-weight snap action switch
  • Switches can be mounted close together in any directions

Applications

  • Compact visual equipment
  • Small-sized audio equipment
  • Office automation equipment
Technical specifications
Connection solder connection
Design straight
Actuator pin plunger
actuating force 0.98 N
Latching switching function On-On
Breaking capacity 0.5 A/30 VDC
Switching point 6.4 mm ±0.6 mm
Protection class IP40
Logistics
Country of origin JP
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
