AV402461J | Panasonic

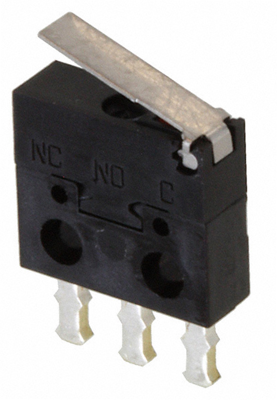

Ultraminiature snap-action switche, On-On, solder connection, hinge lever, 0.25 N, 0.1 A/30 VDC, IP40, AV402461J
Unit Price (€ / pc.)
3.3201 € *
Available: 50 pcs.
Leadtime: 13 Weeks **
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
2.9155 €
100 pcs.
2.5585 €
250 pcs.
2.4633 €
1000 pcs.
2.3086 €
*incl. VAT plus shipping costs
**Subject to prior sale
Superminiature snap-action switches, type Panasonic AV4.
With solder terminals; Contact type: CO, gold-plated. Switching voltage: 30 VDC. Switching current range: 0.2 mA to 0.1 A. Useful life: mechanical/electrical 300000/200000 cycles. Degree of protection: IP 40.
With flat lever actuator, type AV4.
Technical attributes (type, actuating force): AV402461, 0.25 N
Technical specifications
| Connection | solder connection | |
| Design | straight | |
| Actuator | hinge lever | |
| actuating force | 0.25 N | |
| Latching switching function | On-On | |
| Breaking capacity | 0.1 A/30 VDC | |
| Switching point | 6.4 mm ±0.6 mm | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
