AV4024J | Panasonic

Superminiature snap-action switche, On-On, solder connection, hinge lever, 0.25 N, 0.5 A/30 VDC, IP40, AV4024J

Order No.: 34G6728
EAN: 4099889218152
MPN:
AV4024J
AV4024
Series: AV4
Panasonic
AV4024J Panasonic Snap Action Switches
Image may differ
Unit Price (€ / pc.)
2.023 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
2.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
2.023 €

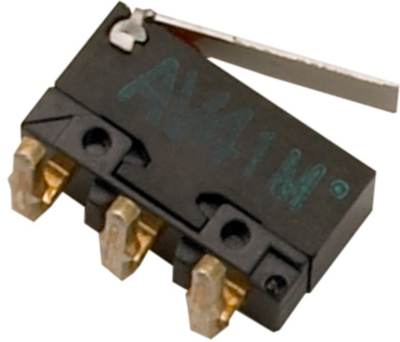

Superminiature-Switch, AV4024J, PANASONIC

Superminiature-Switch, IP40, Solder terminal with mounting holes 1, 65 mm, Hinge lever, 0,25 N, Silver contact.

Features

  • Superminiature txpe, light-weight snap action switch
  • Switches can be mounted close together in any directions

Applications

  • Compact visual equipment
  • Small-sized audio equipment
  • Office automation equipment
Technical specifications
Connection solder connection
Design straight
Actuator hinge lever
actuating force 0.25 N
Latching switching function On-On
Breaking capacity 0.5 A/30 VDC
Switching point 6.4 mm ±0.6 mm
Protection class IP40
Logistics
Country of origin JP
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
