CCAL2H109120-X | Panduit
Cable clamp, max. bundle Ø 120 mm, aluminum, metal, (L x W x H) 186 x 50 x 128 mm, CCAL2H109120-X
Order No.: 13H2192
EAN: 4099891754266
MPN:
CCAL2H109120-X
61305674749
Unit Price (€ / pc.)
37.1756 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.18 € *
Price list
Quantity
Price per unit*
1 pcs.
37.1756 €
10 pcs.
34.5814 €
25 pcs.
31.8087 €
50 pcs.
28.9527 €
*incl. VAT plus shipping costs
**Subject to prior sale

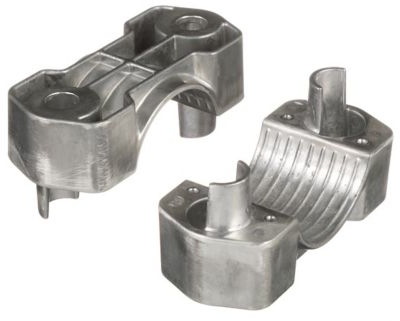

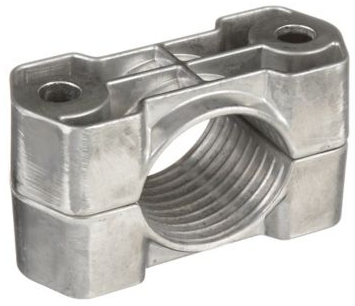

Cable Cleat, CCAL2H109120-X, Panduit
The Aluminum Two-Hole Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for single conductor cables. The cleat is installed after running cable by installing direct to the cable tray rung via fixing holes and two M10 bolts. Insulating spacers and washers are available to protect against galvanic corrosion in case of dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Width | 50 mm | |
| Colour | metall | |
| Height | 128 mm | |
| Length | 186 mm | |
| Material | Aluminium | |
| max. Bundle diameter | 120 mm | |
| Product type | Kabelschelle | |
| Self-adhesive | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
