CCAL2H5870-X | Panduit
Cable clamp, max. bundle Ø 70 mm, aluminum, metal, (L x W x H) 132 x 45 x 73 mm, CCAL2H5870-X
Order No.: 13H2188
EAN: 4099891754228
MPN:
CCAL2H5870-X
61305674745
Unit Price (€ / pc.)
17.0884 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.09 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0884 €
10 pcs.
15.7199 €
50 pcs.
14.3038 €
100 pcs.
12.8758 €
*incl. VAT plus shipping costs
**Subject to prior sale

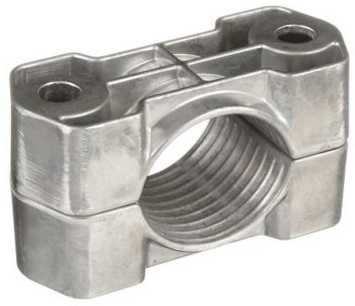

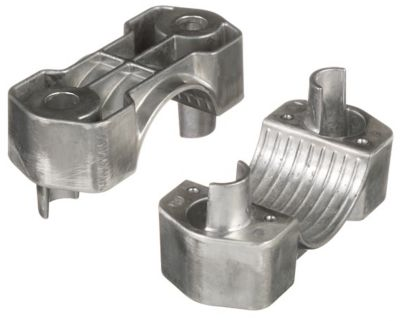

Cable Cleat, CCAL2H5870-X, Panduit
The Aluminum Two-Hole Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for single conductor cables. The cleat is installed after running cable by installing direct to the cable tray rung via fixing holes and two M10 bolts. Insulating spacers and washers are available to protect against galvanic corrosion in case of dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Version | cable clamp | |
| Width | 45 mm | |
| Colour | metal | |
| Height | 73 mm | |
| Length | 132 mm | |
| Material | aluminum | |
| max. Bundle diameter | 70 mm | |
| Self-adhesive | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
