CCALTR2730-X | Panduit

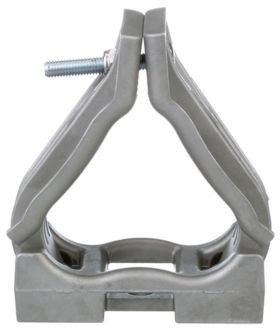

Cable clamp, max. bundle Ø 30 mm, aluminum, metal, (L x W x H) 98 x 55 x 107 mm, CCALTR2730-X
Order No.: 13H2164
EAN: 4099891753986
MPN:
CCALTR2730-X
61305675536
Unit Price (€ / pc.)
27.9650 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
27.97 € *
Price list
Quantity
Price per unit*
1 pcs.
27.9650 €
10 pcs.
26.0134 €
25 pcs.
23.9309 €
50 pcs.
21.7770 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable Cleat, CCALTR2730-X, Panduit
The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for trefoil cable arrangements. The cleat can be installed after running cable via a unique in the industry mounting bracket or before running cable through it by installing direct to the cable tray rung via a fixing hole and M8 bolt. Insulating spacers and washers are available to protect against galvanic corrosion between dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Version | cable clamp | |
| Width | 55 mm | |
| Colour | metal | |
| Height | 107 mm | |
| Length | 98 mm | |
| Material | aluminum | |
| max. Bundle diameter | 30 mm | |
| Self-adhesive | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
