CCALTR3438-X | Panduit
Cable clamp, max. bundle Ø 38 mm, aluminum, metal, (L x W x H) 106 x 55 x 121 mm, CCALTR3438-X
Order No.: 13H2167
EAN: 4099891754013
MPN:
CCALTR3438-X
61305675539
Unit Price (€ / pc.)
31.9634 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.96 € *
Price list
Quantity
Price per unit*
1 pcs.
31.9634 €
10 pcs.
29.7262 €
25 pcs.
27.3462 €
50 pcs.
24.8829 €
*incl. VAT plus shipping costs
**Subject to prior sale

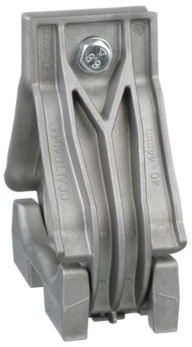

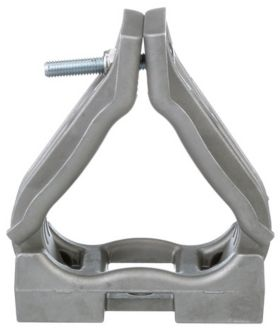

Cable Cleat, CCALTR3438-X, Panduit
The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for trefoil cable arrangements. The cleat can be installed after running cable via a unique in the industry mounting bracket or before running cable through it by installing direct to the cable tray rung via a fixing hole and M8 bolt. Insulating spacers and washers are available to protect against galvanic corrosion between dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Version | cable clamp | |
| Width | 55 mm | |
| Colour | metal | |
| Height | 121 mm | |
| Length | 106 mm | |
| Material | aluminum | |
| max. Bundle diameter | 38 mm | |
| Self-adhesive | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
