CCALTR6067-X | Panduit
Cable clamp, max. bundle Ø 67 mm, aluminum, metal, (L x W x H) 156 x 55 x 178 mm, CCALTR6067-X
Order No.: 13H2174
EAN: 4099891754082
MPN:
CCALTR6067-X
61305675546
Unit Price (€ / pc.)
42.1022 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
42.10 € *
Price list
Quantity
Price per unit*
1 pcs.
42.1022 €
10 pcs.
39.5794 €
25 pcs.
36.8067 €
50 pcs.
33.8674 €
*incl. VAT plus shipping costs
**Subject to prior sale

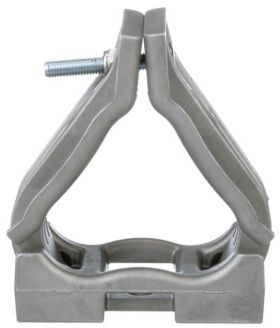

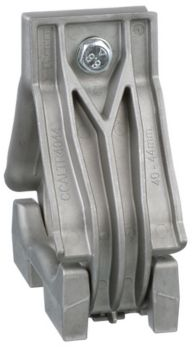

Cable Cleat, CCALTR6067-X, Panduit
The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments. It is suitable for trefoil cable arrangements. The cleat can be installed after running cable via a unique in the industry mounting bracket or before running cable through it by installing direct to the cable tray rung via a fixing hole and M8 bolt. Insulating spacers and washers are available to protect against galvanic corrosion between dissimilar cable tray rung and cable cleat materials.
Technical specifications
| Version | cable clamp | |
| Width | 55 mm | |
| Colour | metal | |
| Height | 178 mm | |
| Length | 156 mm | |
| Material | aluminum | |
| max. Bundle diameter | 67 mm | |
| Self-adhesive | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
