CCPL2H150165-X | Panduit
Cable clamp, max. bundle Ø 165 mm, PA, black, (L x W x H) 58 x 227 x 177 mm, CCPL2H150165-X
Order No.: 13H2155
EAN: 4099891753894
MPN:
CCPL2H150165-X
61305673311
Unit Price (€ / pc.)
69.2699 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
69.27 € *
Price list
Quantity
Price per unit*
1 pcs.
69.2699 €
5 pcs.
64.9264 €
10 pcs.
62.7725 €
*incl. VAT plus shipping costs
**Subject to prior sale

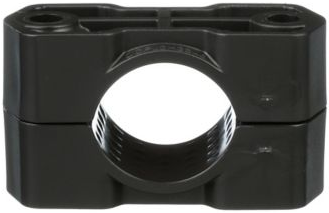

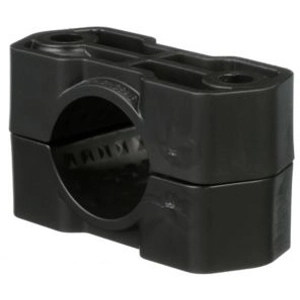

Cable Cleat, CCPL2H150165-X, Panduit
The Polymer Two-Hole Cleat is ideal for lower to medium short circuit faults in less harsh environments. It is suitable for single conductor cable arrangements. The cleat is installed after running cable by installing direct to the cable tray rung via fixing holes and two M10 bolts.
Technical specifications
| Version | cable clamp | |
| Width | 227 mm | |
| Colour | black | |
| Height | 177 mm | |
| Length | 58 mm | |
| Material | PA | |
| max. Bundle diameter | 165 mm | |
| Self-adhesive | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
