PLT7LH-C6120 | Panduit
Cable tie, PA, (L x W) 627 x 7.6 mm, bundle-Ø 4.8 to 178 mm, black, UV resistant, -60 to 90 °C, PLT7LH-C6120
Unit Price (€ / pc.)
1.2019 € *
Available: 200 pcs.
Leadtime: On Request **
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.0710 €
100 pcs.
0.9758 €
500 pcs.
0.9044 €
1000 pcs.
0.8330 €
*incl. VAT plus shipping costs
**Subject to prior sale

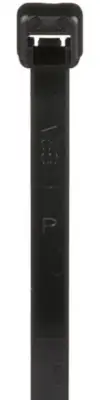

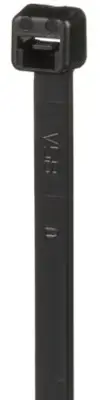

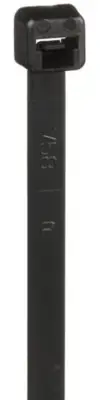

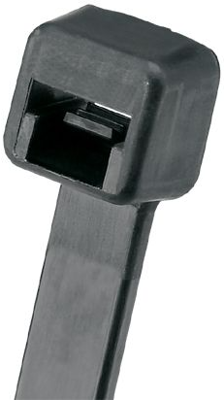

Cable tie, PLT7LH-C6120, Panduit
The PLT7LH-C6120 is a locking cable tie designed to satisfy the needs of solar applications and resistance to corrosive elements such as zinc chloride applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-Heavy cross section, 627 mm length.
Technical specifications
| Width | 7.6 mm | |
| Chemical resistant | Yes | |
| Thickness | 1.9 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Length | 627 mm | |
| Material | PA | |
| max. Bundle diameter | 178 mm | |
| max. operating temperature | 90 °C | |
| min. Bundle diameter | 4.8 mm | |
| min. operating temperature | -60 °C | |
| UV-resistant | Yes | |
| detachable closure | No | |
| Min holding force | 534 N |
Download
Logistics
| Customs tariff number | 39269097 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
