A10-N050-A | PANTA
Flat conductor connector, 10 pole, pitch 2.54 mm, 0.205 mm², AWG 24, PEN, A10-N050-A
Order No.: 58F320
EAN: 4099891234638
MPN:
A10-N050-A
Unit Price (€ / pc.)
2.5347 € *
Available: 596 pcs.
Leadtime: 8 Weeks **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3324 €
50 pcs.
2.2015 €
100 pcs.
2.0706 €
500 pcs.
1.9278 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flex cable connectors, type PANTA FIX JUMPER.

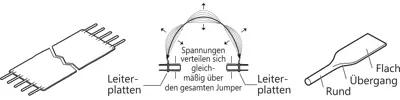

Ultra-flexible flat cable connector that combines the properties of a ribbon cable and connecting pin of a plug. High resistance to vibration and bending stress through flat-rolled round conductors. Straight solder pins on both ends, tinned copper wires; Pin length: 3.20 mm ±0.7 mm. Operating temperatures: –40 to +125 °C. Soldering temperature: 260 °C/5.0 s.
With 2.54 mm grid.
Pin diameter: 0.51 mm. Wire gage: AWG 24. Rated current: 3.0 A. Rated voltage: 300 VDC. Electric strength: min. 1500 VDC. Insulation material: PEN.
Technical attributes (type, number of poles, insulation length): A10-N050-A, 10-pole, 50 mm
Technical specifications
| Core insulation material | PEN | |
| Number of cores | 10 | |
| Version | flat ribbon cable | |
| AWG cross-section | AWG 24 | |
| Width | 1.5 mm | |
| Halogen free | No | |
| Cable length | 50 mm | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.205 mm² | |
| Rated voltage | 300 V | |
| Pin lenght | 3.2 mm | |
| Test voltage | 1.5 kV | |
| Grid | 2.54 mm | |
| Shielding | unshielded | |
| Temperature range (active) | -40 °C to 125 °C | |
| Temperature range (unmoved) | -40 °C to 125 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
