B10-N051-A | PANTA
Flat conductor connector, 10 pole, pitch 1.27 mm, 0.08 mm², AWG 28, nomex, B10-N051-A
Order No.: 58F300
EAN: 4099891234607
MPN:
B10-N051-A
Unit Price (€ / pc.)
2.5347 € *
Available: 395 pcs.
Leadtime: 8 Weeks **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3324 €
50 pcs.
2.2015 €
100 pcs.
2.0706 €
500 pcs.
1.9278 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flex cable connectors, type PANTA FIX JUMPER.

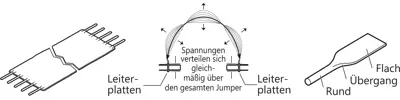

Ultra-flexible flat cable connector that combines the properties of a ribbon cable and connecting pin of a plug. High resistance to vibration and bending stress through flat-rolled round conductors. Straight solder pins on both ends, tinned copper wires; Pin length: 3.20 mm ±0.7 mm. Operating temperatures: –40 to +125 °C. Soldering temperature: 260 °C/5.0 s.
With 1.27 mm grid.
Pin diameter: 0.32 mm, wire gage AWG 28. Rated current (+20 °C): 1.5 A. Rated voltage: 200 VDC. Electric strength: min. 1100 VDC. Insulation material: Nomex.
Technical attributes (type, number of poles, insulation length): B10-N051-A, 10-pole, 51 mm
Technical specifications
| Aderisolationsmaterial | Nomex | |
| Anzahl der Adern | 10 | |
| Ausführung | Flachbandleitung | |
| AWG-Leiterquerschnitt | AWG 28 | |
| Breite | 0.75 mm | |
| Halogenfrei | No | |
| Kabellänge | 51 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,08 mm² | |
| Nennspannung | 200 V | |
| Pinlänge | 3.2 mm | |
| Prüfspannung | 1.1 kV | |
| Rastermaß | 1.27 mm | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (bewegt) | -40 °C bis 125 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 125 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
