PCE-910 | PCE Instruments
PCE Instruments pressure gauge, PCE-910
Pressure meter, PCE-910, PCE Instruments

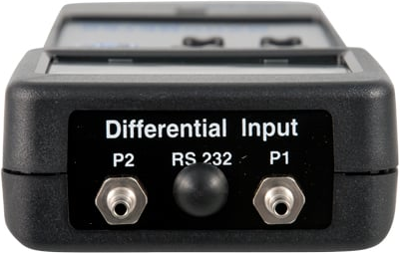

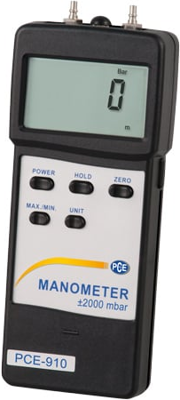

PCE-910 is a portable handheld digital differential pressure gauge, meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-910 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions. The PCE-910 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery.
Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
Scope of delivery
- 1 x Pressure gauge PCE-910
- 1 x Battery
- 2 x special stainless steel hose adapter
- 1 x 1 m silicone hose
- 1 x carrying case
| Resolution | 1 mbar, 0,01 psi, 0,5 inH2O, 0,01 mH2O, 0,02 inHg, 1 mmHG, 0,001 atm, 0,001 kg/cm² | |
| Version | 2,8 Zoll LCD mit Beleuchtung, RS232 | |
| Accuracy | ±2 % FS. | |
| measurement range | -2000 bis 2000 mbar, -29 bis 29 psi, -802 bis 802 inH2O, -20,4 bis 20,4 mH2O, -59 bis 59 inHg, -1500 bis 1500 mmHg, 1,974 bis 1,974 atm, -2,04 bis 2,04 kg/cm² | |
| Product type | Druckmessgerät | |
| Degree of protection (IP) | IP20 |
| Country of origin | TW |
| Customs tariff number | 90262020 |
| RoHS conform | in_review |
| SVHC free | not_specified |
