PCE-AQD 20 | PCE Instruments

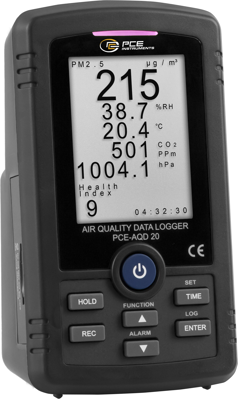

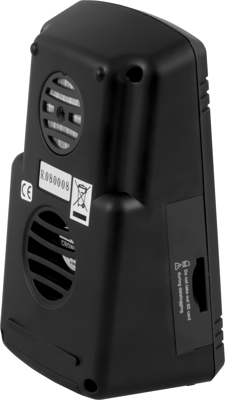

PCE Instruments dust meter, PCE-AQD 20
Thermometer, PCE-AQD 20, PCE Instruments
The thermometer is an ideal measuring device for monitoring the air quality at workplaces. The air quality meter is ideal for continuous logging of air temperature, humidity, CO2, PM2.5 and air pressure. All these parameters give the occupational safety expert information about the air quality. The measured values are stored by the air quality meter on an SD memory card.
The format is XLS, so the measured values can be read directly into Excel, without having to be incorporated into a new software. The measured values are displayed on the large, illuminated display. The thermometer is operated by batteries or 9 V power supply unit. As a special feature, this air quality meteris equipped with an alarm function. This offers the possibility to inform the user about an exceeding of temperature, air humidity or dust load. In addition to the measured values, the air quality meter also informs about the current time.
Features
- 5 measuring functions
- Excel data logger on SD card

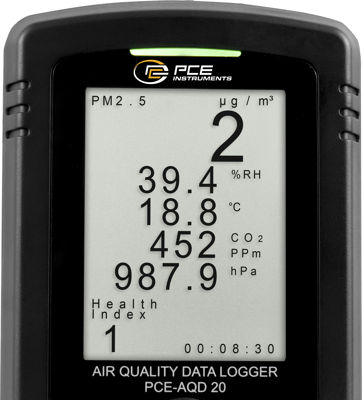

- Large display
- Battery and power adapter operation
- Ideal for workplace monitoring
Scope of delivery
- 1 x PCE-AQD 20 dust analyser
- 1 x plug-in power supply 9 V / 1 A
| Resolution | 1 ppm, 0,1 % r.F., 0,1 hPa, 1 µg/m³, 0,1 °C | |
| Version | 3,4 Zoll LCD mit Beleuchtung, RS232 | |
| Accuracy | ±40 ppm, ±50 ppm + 3 % n.Mw., ±3 % r.F., ±3 % v.Mw. +1 % r.F. | |
| max. operating temperature | 50 °C | |
| measurement range | 0 bis 1000 ppm, 1000 bis 3000 ppm, 3000 bis 10000 ppm, 10 bis 1100 hPa, 0 bis 250 µg/m³ | |
| min. operating temperature | 0 °C | |
| Product type | Staubmessgerät | |
| Relative Humidity Range | 5 bis 70 % r.F., 70 bis 95 % r.F. | |
| Degree of protection (IP) | IP20 |
| Country of origin | TW |
| Customs tariff number | 90271010 |
| RoHS conform | in_review |
| SVHC free | not_specified |
