PCE Instruments hot wire anemometer, PCE-HWA 30
Hot wire anemometer, PCE-HWA 30, PCE Instruments

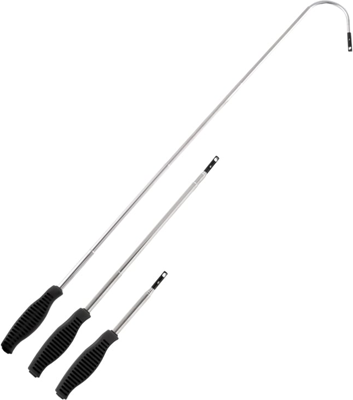

The data logger with USB interface measures the flow velocity according to the hot wire principle. This guarantees a particularly compact design. The measuring range of the hot wire anemometer is between 0.3 ... 30.0 m/s / 0.98 ... 98.4 ft/s. In addition to the flow velocity, the hot wire anemometer can measure the volume flow and the ambient temperature. For each measurement, a Beaufort scale is displayed next to the measured value. The current wind strength can be read from this scale. With the integrated data memory, up to 960 measured values can be recorded with the data logger with USB interface. The data can be read directly on the hot wire anemometer. Also, the measured values from the hot wire anemometer can be transferred to a PC via the micro USB interface. Suitable software for the hot wire anemometer is available in the PCE Instruments download portal for further processing of the data. For optimal alignment, the telescopic arm of the data logger with USB interface can be extended up to 270 … 990 mm / 10.63 … 38.98 / 29.1". In addition, the head of the hot wire anemometer is semi-rigid and can therefore be aligned in different ways. The battery of the hot wire anemometer with a capacity of 1000 mAh enables mobile use. To recharge the battery, the hot wire anemometer must be connected to a 5 V DC micro-USB power supply.
Features
- Hot wire anemometer with data storage
- Software for reading out the measured values
- Swiveling telescopic arm
- Data memory for 960 measured values
- Beaufort scale
Scope of delivery
- 1 x PCE-HWA 30 hot-wire anemometer
- 1 x Micro USB cable
- 1 x Carrying case
Resolution | 0,01 km/h, 0,1 m³/min, 0,1 °C | |
Accuracy | ±1 °C, ±3 % | |
max. operating temperature | 50 °C | |
measurement range | 0,3 bis 30 km/h, 0 bis 9,9 m³/min | |
min. operating temperature | 0 °C | |
Product type | Hitzdraht-Anemometer | |
Degree of protection (IP) | IP20 |
Country of origin | CN |
Customs tariff number | 90268020 |
RoHS conform | in_review |
SVHC free | not_specified |
