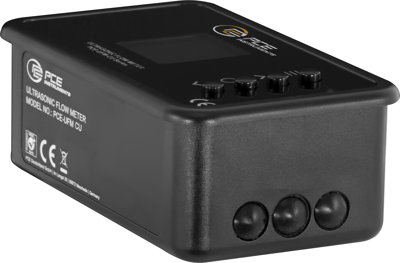

Flow meter, PCE-UFM 25CU, PCE Instruments
This clamp-on ultrasonic flow meter enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on copper pipes with a diameter between 21 and 29 mm. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel. The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters.
Features
- Pipe size: DN25
- Interface: Ethernet
- Includes reusable coupling pads
Scope of delivery

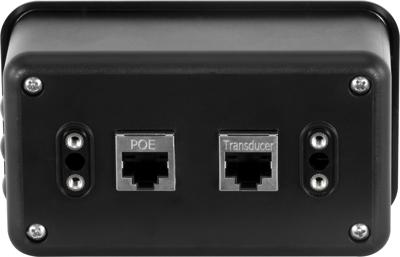

- 1 x Flow meter for fixed installation PCE-UFM 25CU
- 1 x sensor with Ethernet cable 9 m
- 1 x PoE network cable 2 m
- 1 x ultrasound contact gel
- 1 x silicone seal 1m
- 4 x coupling pad
- 1 x Allen key
Technical specifications
| Resolution | 0,01 m/s, 0,01 m³/h | |
| Version | für Kupfer Rohre, DN25 | |
| Accuracy | 2 % | |
| max. operating temperature | 50 °C | |
| measurement range | 0,03 bis 5 m/s, 0,05 bis 9 m³/h | |
| min. operating temperature | -10 °C | |
| Product type | Durchflussmesser | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90261021 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
