PCE-UFM 40PVC | PCE Instruments
PCE Instruments flow meter, PCE-UFM 40PVC
Order No.: 31K0808
EAN: 4250348734037
MPN:
PCE-UFM 40PVC
Unit Price (€ / pc.)
1,245.0494 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1,245.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,245.0494 €

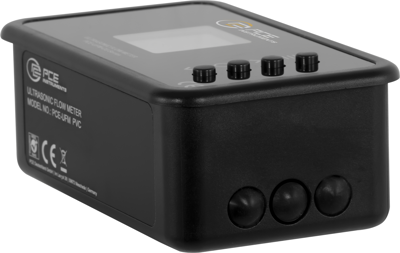

Flow meter, PCE-UFM 40PVC, PCE Instruments

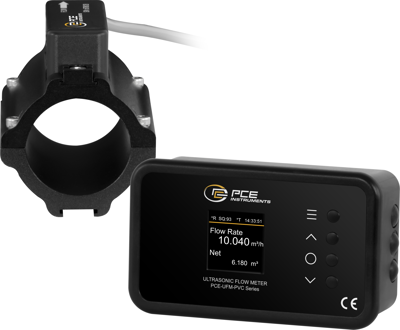

This clamp-on ultrasonic flow meter enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on PVC pipes with a diameter between 46 and 54 mm. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel. The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters.
Features
- Pipe size: DN40

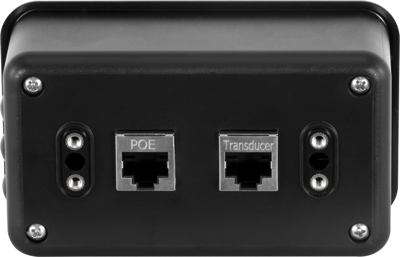

- Interface: Ethernet
- Includes reusable coupling pads
Scope of delivery
- 1 x Flow meter for fixed installation PCE-UFM 40PVC
- 1 x sensor with Ethernet cable 9 m
- 1 x PoE network cable 2 m
- 1 x ultrasound contact gel
- 1 x silicone seal 1m
- 4 x coupling pad
- 1 x Allen key
Technical specifications
| Resolution | 0,01 m/s, 0,01 m³/h | |
| Version | für PVC-Rohre, DN40 | |
| Accuracy | 2 % | |
| max. operating temperature | 50 °C | |
| measurement range | 0,03 bis 5 m/s, 0,13 bis 23 m³/h | |
| min. operating temperature | -10 °C | |
| Product type | Durchflussmesser | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90261021 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
