PCE Instruments flow meter, PCE-UFM 65PVC

Order No.: 31K0812
EAN: 4250348734051
MPN:
PCE-UFM 65PVC

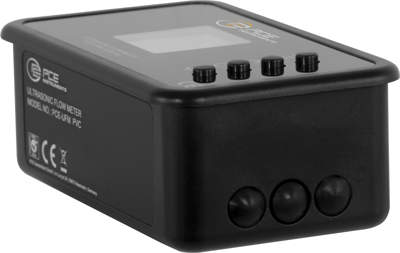

PCE-UFM 65PVC PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 1

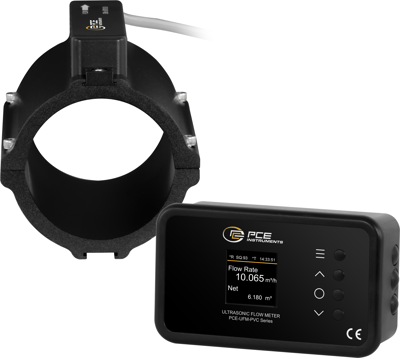

PCE-UFM 65PVC PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 2

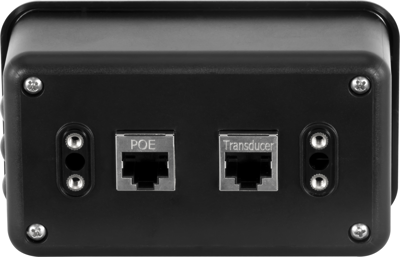

PCE-UFM 65PVC PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 3
Image may differ
Unit Price (€ / pc.)
1,435.9135 € *
Available: 0 pcs.
Available in 4 Days: 2 pcs.
Leadtime: 9 Weeks **
Total Price:
1,435.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,435.9135 €

Flow meter, PCE-UFM 65PVC, PCE Instruments

This clamp-on ultrasonic flow meter enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on PVC pipes with a diameter between 72 and 80 mm. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel. The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters.

Features

  • Pipe size: DN65
  • Interface: Ethernet
  • Includes reusable coupling pads

Scope of delivery

  • 1 x Flow meter for fixed installation PCE-UFM 65PVC
  • 1 x sensor with Ethernet cable 9 m
  • 1 x PoE network cable 2 m
  • 1 x ultrasound contact gel
  • 1 x silicone seal 1m
  • 4 x coupling pad
  • 1 x Allen key
Technical specifications
Resolution 0,01 m/s, 0,01 m³/h
Version für PVC-Rohre, DN65
Accuracy 2 %
max. operating temperature 50 °C
measurement range 0,03 bis 5 m/s, 0,35 bis 60 m³/h
min. operating temperature -10 °C
Product type Durchflussmesser
Degree of protection (IP) IP54
Logistics
Country of origin CN
Customs tariff number 90261021
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
