Heat Pump Test Equipment PCE-UFM 80PVC
Order No.: 31K0815
EAN: 4250348734068
MPN:
PCE-UFM 80PVC
Unit Price (€ / pc.)
1,677.90 € *
Available: 0 pcs.
Available in 4 Days: 2 pcs.
Leadtime: 9 Weeks **
Flow meter, PCE-UFM 80PVC, PCE Instruments

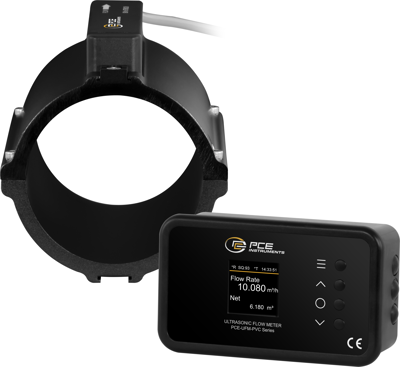

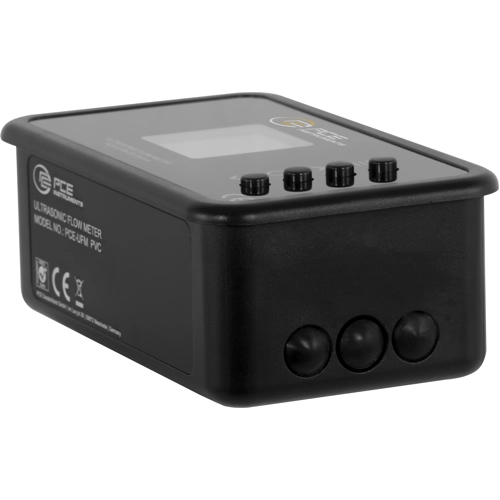

This clamp-on ultrasonic flow meter enables the measurement of flow velocity from 0.03 to 5 m/s. It can be used for measurements on PVC pipes with a diameter between 83 and 91 mm. The flow meter has a separate external clamping device for easy installation without having to touch the liquid medium or stop the production. Special coupling pads ensure that this ultrasonic clamp-on system can also be used without contact gel. The LCD colour display shows the flow velocity, date, time, signal quality, network connection status, instantaneous velocity and cumulative flow, among other parameters.
Features
- Pipe size: DN80

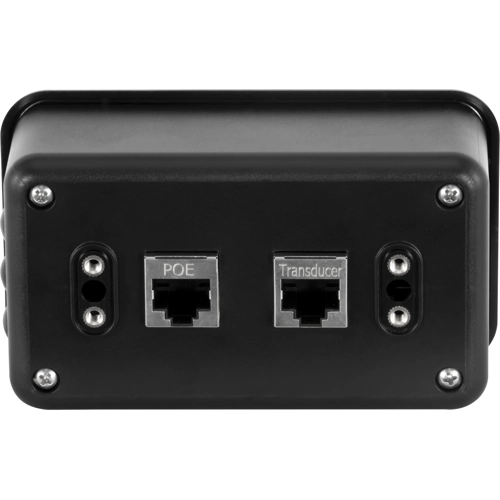

- Interface: Ethernet
- Includes reusable coupling pads
Technical specifications
| Auflösung | 0,01 m/s, 0,01 m³/h | |
| Ausführung | Durchflussmesser | |
| Genauigkeit | 2 % | |
| max. Temperatur | 50 °C | |
| Messbereich | 0,03 bis 5 m/s, 0,55 bis 90 m³/h | |
| min. Temperatur | -10 °C | |
| Schutzart (IP) | IP54 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90261021 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
