PCE Instruments gas warning system, PCE-WMM 100

Order No.: 31K0873
EAN: 4250348720245
MPN:
PCE-WMM 100
PCE-WMM 100 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 1
PCE-WMM 100 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 2
PCE-WMM 100 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 3
PCE-WMM 100 PCE Instruments Anemometers, Gas and Pressure Measuring Instruments Image 4
Image may differ
Unit Price (€ / pc.)
726.0904 € *
Available: 0 pcs.
Available in 4 Days: 2 pcs.
Leadtime: 9 Weeks **
Total Price:
726.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
726.0904 €

Gas detector, PCE-WMM 100, PCE Instruments

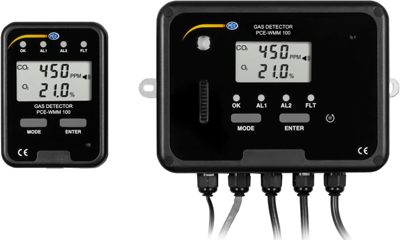

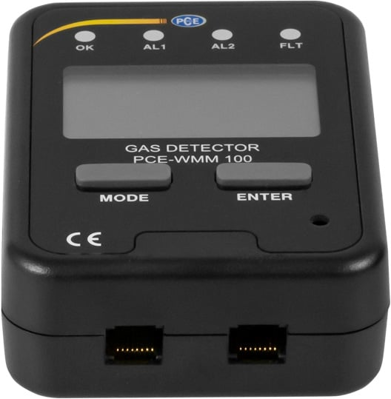

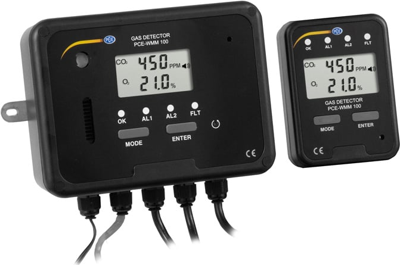

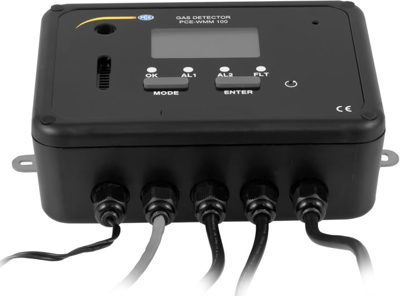

The CO2 warning device PCE-WMM 100 consists of a main unit and a remote display. The CO2 gas detector PCE-WMM 100 is used to measure carbon dioxide and oxygen in a fixed location. The gas warning system displays the measured values on an LCD. The PCE-WMM 100 CO2 warning device has two relays that can be used to control alarm lights or sounders. Furthermore, the CO2 warning device has an integrated, acoustic alarm, which emits an audio signal of 80 db in the event of an alarm.

Features

  • Main and remote unit
  • Alarm relay
  • Acoustic alarm
  • Integrated temperature measurement

Scope of delivery

  • 1 x CO2 / O2 gas warning system PCE-WMM 100
  • 1 x remote unit
  • 8 m connection cable
  • 1 x plug-in power supply unit
  • 1 x mounting material
Technical specifications
Version CO2/O2
Accuracy ±100 ppm, <3 %
max. operating temperature 40 °C
measurement range CO2 0-50000 ppm, O2 0-30 %
min. operating temperature 0 °C
Product type Gaswarnanlage
Degree of protection (IP) IP54
Logistics
Country of origin TW
Customs tariff number 90271010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
