PCE-LMDC 200 | PCE Instruments

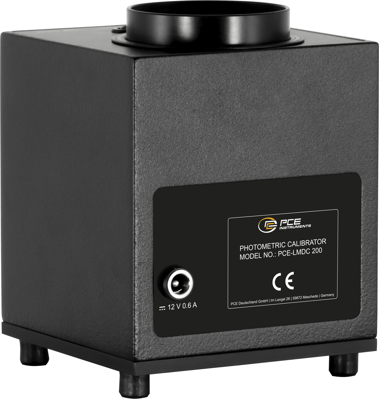

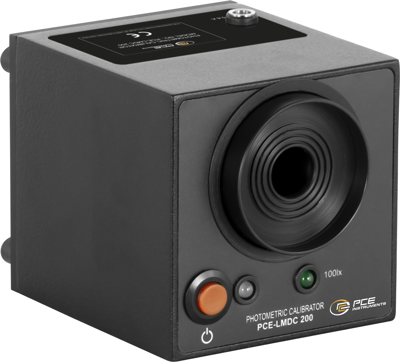

Calibrator PCE-LMDC 200 for PCE-LMD 200
Light calibrator, PCE-LMDC 200, PCE Instruments
The simulator for light measuring devices is characterised by its precise properties. The light intensity of the simulator is fixed at 100 lux and ensures reliable and precise adjustment of the light sensors. Light measuring devices that are checked and adjusted with the simulator provide reliable measured values under real conditions. Another important feature of the simulator is its defined light colour of 3000 Kelvin. This colour temperature of the simulator's light source is adapted to common lighting conditions and therefore enables realistic calibration. The working period of the simulator is 1 minute. This short period of time ensures that the simulator's light source is not subject to unnecessary wear and tear.
In addition, the simulator includes an input voltage control to ensure that the simulator is operated under optimal conditions. This function helps to eliminate possible sources of error and ensure the accuracy of the light output. Overall, this simulator is a reliable and precise solution for calibrating light meters, especially the PCE-LMD 200. Its carefully defined features allow the instruments to be precisely adapted to different lighting conditions, ensuring the reliability of light measurements.
Scope of delivery
- 1 x calibrator PCE-LMDC 200
- 1 x plug-in power supply unit
- 1 x wooden storage box
Width | 80 mm | |
Length | 110 mm | |
max. operating temperature | 40 °C | |
measurement range | 100 lx, 3000 K | |
min. operating temperature | 0 °C | |
Product type | Lichtkalibrator | |
Voltage | 12 VDC |
Country of origin | PL |
Customs tariff number | 90278910 |
RoHS conform | in_review |
SVHC free | not_specified |
