TRMS AC/DC multimeter clamp PCE-HVAC 6, 1000 A (DC), 1000 A (AC), 600 V (DC), 600 V (AC), opening 48 mm, CAT II 1000 V, CAT III 600 V

Order No.: 31K0250
EAN: 4250348718129
MPN:
PCE-HVAC 6

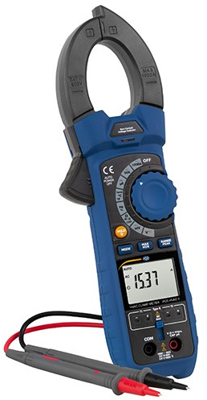

PCE-HVAC 6 PCE Instruments Clamp Meters Image 1

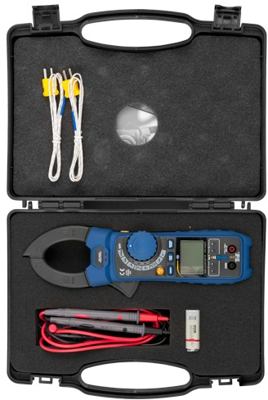

PCE-HVAC 6 PCE Instruments Clamp Meters Image 2
Image may differ
Unit Price (€ / pc.)
236.0484 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
236.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
236.0484 €

AC/DC multimeter clamp, PCE-HVAC 6, PCE Instruments

The multimeter clamp was specially developed for the tradesman in the field of heating, ventilation and air conditioning technology. This multimeter clamp is ideal for many inspection and maintenance jobs in this area. This multimeter clamp combines many gauges in one. It is possible with this meter to measure currents up to 1000 A in the DC and AC range via the clamp. Furthermore, voltages up to 600V AC / DC can be determined exactly. For quick and easy testing of electrical conductors, the multimeter clamp is equipped with non-contact voltage detection.

The multimeter clamp can also measure resistors and capacitors. The diode test and continuity test complete the series of electrical measuring functions of the multimeter clamp. As a special feature, the multimeter clamp has 2 measuring inputs for Type-K thermocouples. With the help of these thermocouples, for example, the flow and return temperature of heating systems can be measured.

Features

  • Current measurement up to 1000 A
  • Cover of the measuring sockets
  • Voltage measurement up to 600V
  • Temperature measurement via 2 thermocouples
  • Display & measuring point illumination
  • Non-contact voltage detection
Technical specifications
Echteffektivwertmessung (TRMS) möglich Yes
max. Messwert (Frequenz) 10 MHz
max. Strommesswert (bei AC) 1000 A
max. Strommesswert (bei DC) 1000 A
max. Widerstandsmessbereich 50 MΩ
min. Messwert (Frequenz) 50 Hz
Produkt-Art AC/DC-Multimeterzange
Spannungsmessbereich (AC) 600 V
Spannungsmessbereich (DC) 600 V
Überspannungskategorie CAT II 1000 V, CAT III 600 V
Zangenöffnung 48 mm
Logistics
Ursprungsland CN
Zolltarifnummer 90303100
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
