Ultrasonic flaw detector PCE-FD 20

Order No.: 31K0498
EAN: 4250348715234
MPN:
PCE-FD 20
PCE-FD 20 PCE Instruments Coating thickness gauges Image 1
PCE-FD 20 PCE Instruments Coating thickness gauges Image 2
PCE-FD 20 PCE Instruments Coating thickness gauges Image 3
PCE-FD 20 PCE Instruments Coating thickness gauges Image 4
Image may differ
Unit Price (€ / pc.)
4,179.7679 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
4,179.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,179.7679 €

Flaw detector, PCE-FD 20, PCE Instruments

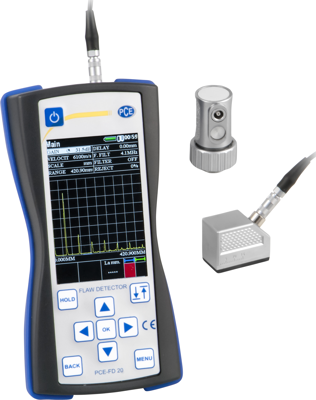

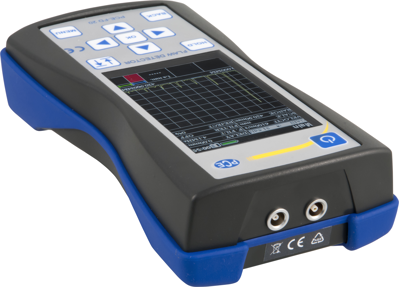

PCE-FD 20 is a portable ultrasonic flaw detector with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based defectoscope uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.

Features

  • Implements shadow, echo and mirror-shadow testing methods
  • Features a USB interface for downloading data to PC for detailed analysis
  • Lightweight

Scope of delivery

  • 1 x PCE-FD 20 ultrasonic fault detector
  • 1 x probe cable (1.5 m)

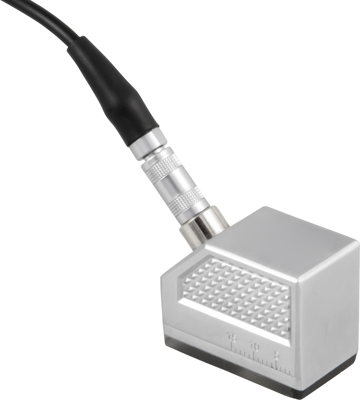

  • 1 x ultrasonic probe (90 °)

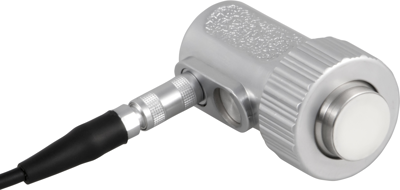

  • 1 x ultrasonic probe (45 °)
  • 3 x 1.5 V Battery (AA)
  • 1 x charging cable
  • 1 x USB cable
  • 1 x Software
Technical specifications
measurement range 6 bis 1000 µs
Product type Ultraschall-Fehlerprüfgerät
Logistics
Country of origin UA
Customs tariff number 90241020
Compliance
RoHS conform in_review
SVHC free not_specified
