PCE-PGM 100 | PCE Instruments

PCE Instruments gloss meter, PCE-PGM 100

Order No.: 31K0636
EAN: 4250348715067
MPN:
PCE-PGM 100

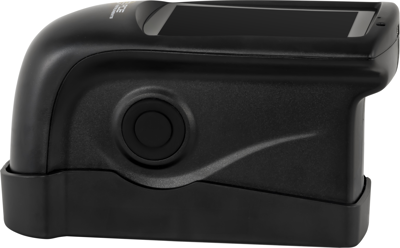

PCE-PGM 100 PCE Instruments Coating thickness gauges Image 1

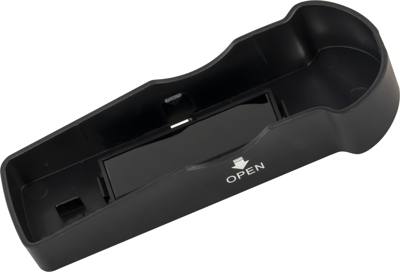

PCE-PGM 100 PCE Instruments Coating thickness gauges Image 2

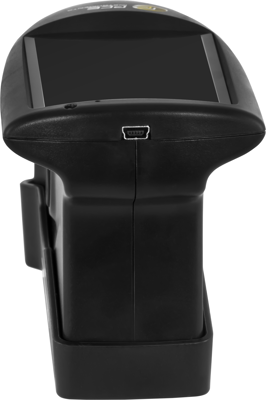

PCE-PGM 100 PCE Instruments Coating thickness gauges Image 3

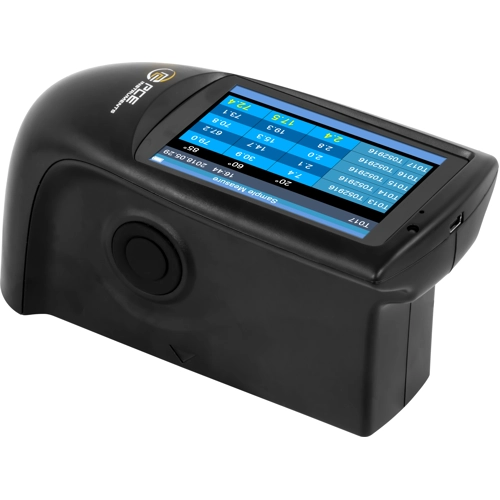

PCE-PGM 100 PCE Instruments Coating thickness gauges Image 4
Image may differ
Unit Price (€ / pc.)
1,312.3082 € *
Available: 0 pcs.
Available in 4 Days: 4 pcs.
Leadtime: 9 Weeks **
Total Price:
1,312.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,312.3082 €

Gloss meter, PCE-PGM 100, PCE Instruments

The PCE-PGM 100 gloss meter works with measuring geometries of 20°, 60° and 85°, using the reflection principle. This means that the gloss meter emits light which hits the surface to be tested. A part of the light will be absorbed by the surface and another part will be reflected. After this, the gloss meter will calculate the degree of gloss. The wide measurement range allows the user to test many different surfaces. These features make the gloss degree meter very useful for gloss measurements in quality and incoming goods control. The included software makes later evaluation of the measured data easily possible.

Features

  • Internal measurement value storage
  • Short measuring time
  • Evaluation software

Scope of delivery

  • 1 x gloss meter PCE-PGM 100
  • 1 x charging adapter
  • 1 x lithium-ion battery
  • 1 x USB cable
  • 1 x calibration plate
  • 1 x evaluation software (on CD-ROM)
Technical specifications
Resolution 0,1 GU
Accuracy ±1,5 GU/±1,5 %
measurement range 0 bis 160 GU/0 bis 1000 GU/0 bis 2000 GU
Product type Glanzmessgerät
Logistics
Country of origin CN
Customs tariff number 90318080
Compliance
RoHS conform in_review
SVHC free not_specified
