PCE-TG 300-NO5/90 | PCE Instruments
Thickness Meter PCE-TG 300-NO5/90
Order No.: 31K0784
EAN: 4250348731135
MPN:
PCE-TG 300-NO5/90
Unit Price (€ / pc.)
914.2294 € *
Available: 0 pcs.
Available in 4 Days: 2 pcs.
Leadtime: 9 Weeks **

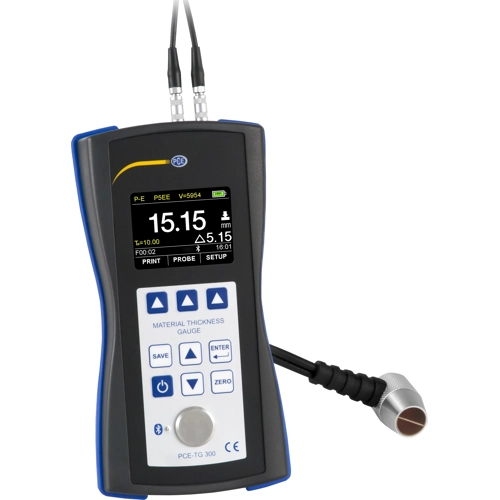

Thickness meter, PCE-TG 300-NO5/90, PCE Instruments

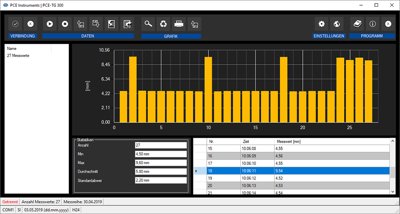

The PCE-TG 300-NO5/90 is a thickness meter with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products.
Features
- Large measuring range
- Battery operation
- Error and voids detection
- Internal measurement data memory
- Print via Bluetooth
Scope of delivery
- 1 x Material thickness gauge PCE-TG 300-NO5/90

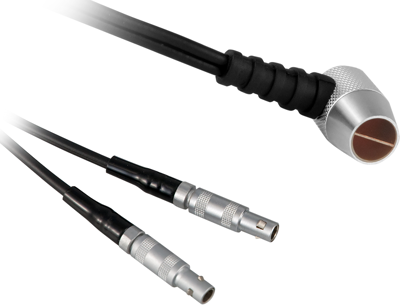

- 1 x Sensor PCE-TG-NO5/90
- 1 x 100 ml Coupling gel
- 1 x Carrying case
- 4 x AA batteries
Technical specifications
Resolution | 0,01 mm, 0,1 mm, 0,001 mm | |
measurement range | 1 bis 600 mm | |
Product type | Materialdickenmessgerät |
Download
Logistics
Country of origin | DE |
Customs tariff number | 90318080 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
