PCE-TG 75A | PCE Instruments

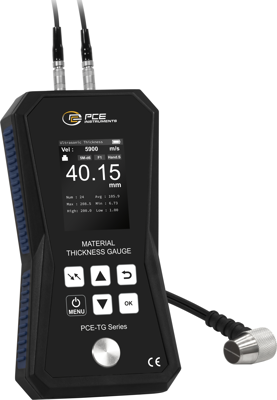

Thickness meter, PCE-TG 75A, PCE Instruments

The thickness meter can measure material thicknesses up to 225 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to store the corresponding sonic velocity in the thickness meter. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sonic velocities are already stored in the device library. This means that the thickness meter can be used universally.

The thickness meter has a data memory on which the measured values can be recorded. After a measurement process, the stored measured values can be analysed directly on the thickness meter. The stored data is displayed graphically by the thickness meter. In addition, each individual measuring point can be approached and read in the graphic of the thickness meter. To simplify the analysis of the measured values, the average, the largest and smallest measured values are displayed on the thickness meter. The thickness meter can optionally be equipped with an ISO calibration certificate.

Features

• Measured value memory
• Calibration reference on housing
• Automatic switch-off

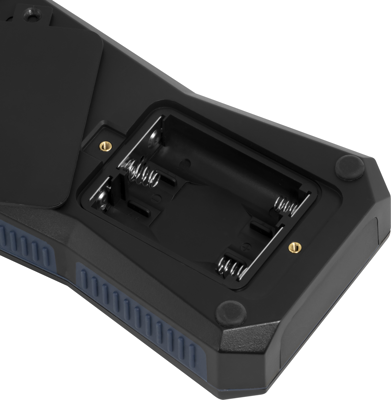

• Battery status display
