PCE-PDR 10 | PCE Instruments
Pressure data logger PCE-PDR 10
Order No.: 31K0207
EAN: 4250348719621
MPN:
PCE-PDR 10
Unit Price (€ / pc.)
344.0052 € *
Available: 0 pcs.
Available in 4 Days: 3 pcs.
Leadtime: 9 Weeks **

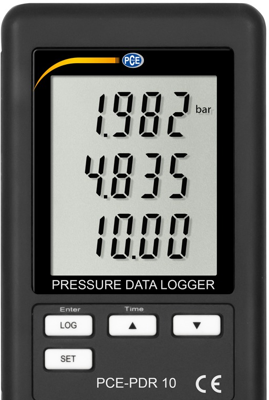

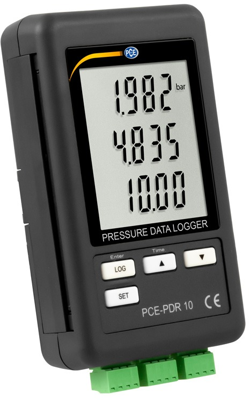

Pressure data logger, PCE-PDR 10, PCE Instruments
The pressure data logger PCE-PDR 10 is a display for measuring pressure. Up to three pressure sensors can be connected to this pressure data logger and synchronously read out and logged. Thanks to the 4 ... 20-mA input signal, many different pressure sensors can be connected. Thanks to the advanced memory interval, measured values can only be stored after a change of ± 10 digits by the pressure data logger. As a result, constant and superfluous measured values are filtered by the pressure data logger. This saves a lot of storage space.

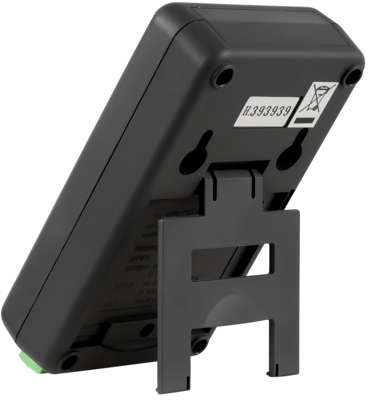

With the stand, the pressure data logger can be positioned freely at a workstation. Due to the included wall mounting set, the pressure data logger can also be fixed to a wall.
Features
- 4 ... 20-mA measuring signal
- Intelligent storage system
- Connection to a PC via RS232
- Wall mounting for permanent installation
- SD card slot for up to 16GB

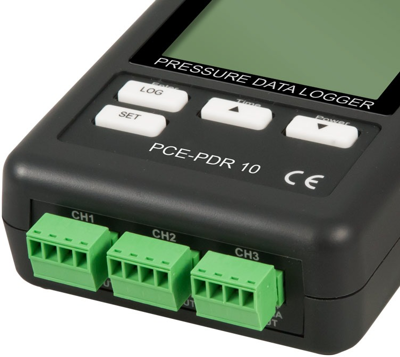

- Measurement of three pressure sensors simultaneously
Technical specifications
| Logging Function | pressure | |
| Interfaces | RS-232 | |
| Recording interval | 5 to 600, auto |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 90262020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
