PCE-N27D | PCE Instruments
Power meter, voltage frequency 2-500 Hz, current frequency 45-500 Hz, 500 VAC, 63 A, -31.5-31.5 kW, (L x W x H) 53 x 110 x 60 mm, PCE-N27D
Order No.: 31K0602
EAN: 4250348718723
MPN:
PCE-N27D
Unit Price (€ / pc.)
129.71 € *
Available: 0 pcs.
Available in 4 Days: 4 pcs.
Leadtime: 9 Weeks **

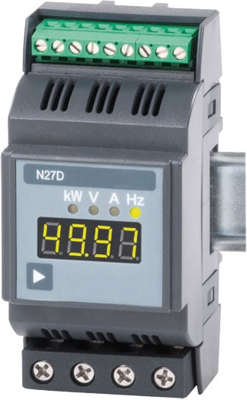

Power meter, PCE-N27D, PCE Instruments
The power indicator measures current up to 63 A directly. This makes it possible to connect the power indicator directly to the main distribution. The power indicator measures all relevant network parameters such as current, voltage, power and frequency. The power indicator is ideally suited for measurement purposes in order to comply with the ISO 50001 energy management standard.
Features
- Measures up to 63 A directly
- DIN rail mounting
- Switchable size
- Simple operation
- LED display
- Easy installation
Technical specifications
| Version | Spannungsfrequenz 2-500 Hz, Stromfrequenz 45-500 Hz | |

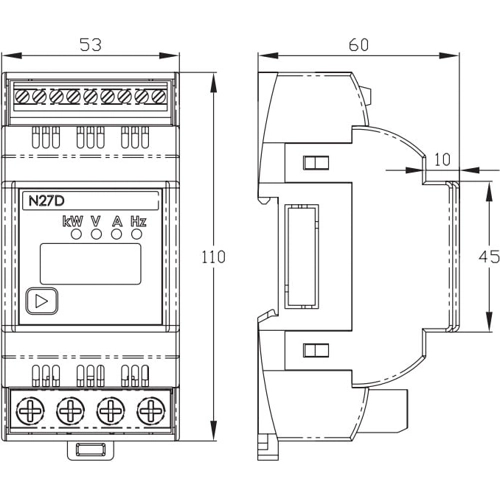

| Width | 110 mm | |
| Weight | 250 g | |
| Height | 60 mm | |
| Length | 53 mm | |
| measurement range | 500 VAC, 63 A, -31,5-31,5 kW | |
| Product type | Leistungsmesser |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 90319000 |
Compliance
| RoHS conform | in_review |
| SVHC free | not_specified |
