PCE-PVA 100 | PCE Instruments

Photovoltaic measuring device, 0-10 V, 0.01-10 A, (L x W x H) 257 x 155 x 57 mm, PCE-PVA 100

Order No.: 31K0666
EAN: 4250348728395
MPN:
PCE-PVA 100

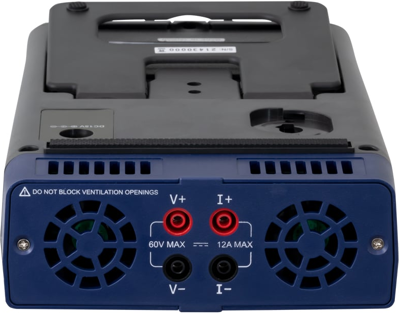

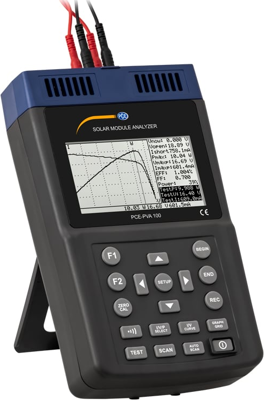

PCE-PVA 100 PCE Instruments Energy Measurement Image 1
PCE-PVA 100 PCE Instruments Energy Measurement Image 2
PCE-PVA 100 PCE Instruments Energy Measurement Image 3
PCE-PVA 100 PCE Instruments Energy Measurement Image 4
Image may differ
Unit Price (€ / pc.)
1,166.8902 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1,166.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,166.8902 €

Radiation detector, PCE-PVA 100, PCE Instruments

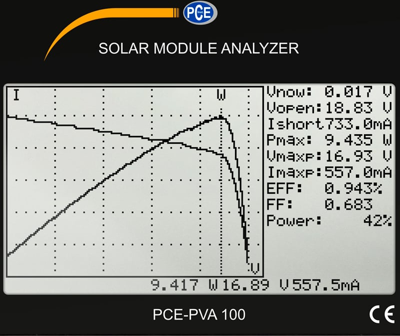

The radiation detector is a useful tool to examine solar cells for their characteristics. The determined characteristic curves are saved directly on the solar module tester. Up to 100 measurements can be stored in the data memory of the radiation detector. The stored measured values ​​can then be read out and further processed on a PC with the associated software. In addition, it is possible to operate the radiation detector completely via the software. The radiation detector has two different measuring functions for determining the characteristics of a solar module. The LCD display of the radiation detector has a size of 4.8“. This means that the characteristic curve and all measured values ​​can be read off at the same time.

Because of its many different functions, the radiation detector is the ideal measuring device to examine solar modules for their effectiveness. The radiation detector is therefore used in photovoltaic systems and research facilities for the further development of solar modules. The radiation detector can optionally be equipped with an ISO calibration certificate.

Features

  • Data memory for 100 measurements
  • Three different test functions
  • PC interface for data transfer
  • Switchable graphic view

Scope of delivery

  • 1 x Photovoltaic analyser PCE-PVA 100
  • 1 x optical USB cable
  • 1 x battery
  • 1 x software CD
  • 2 x Kelvin clamps
  • 2 x safety measuring lead (100 mm)
  • 1 x power supply unit
Technical specifications
Width 155 mm
Weight 1.16 kg
Height 57 mm
Length 257 mm
measurement range 0-10 V, 0,01-10 A
Product type Photovoltaik Messgerät
Logistics
Country of origin TW
Customs tariff number 90303900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
