PCE-2000N | PCE Instruments

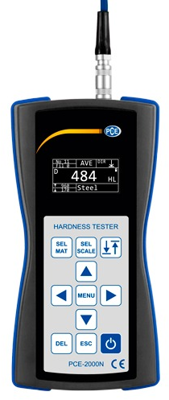

PCE-2000N Portable Hardness Tester Leeb
Order No.: 31K0131
EAN: 4250348718402
MPN:
PCE-2000N
Unit Price (€ / pc.)
995.1137 € *
Available: 0 pcs.
Available in 4 Days: 10 pcs.
Leadtime: 9 Weeks **
Total Price:
995.11 € *
Price list
Quantity
Price per unit*
1 pcs.
995.1137 €
3 pcs.
945.3598 €
10 pcs.
898.0930 €
*incl. VAT plus shipping costs
**Subject to prior sale
Durometer, PCE-2000N, PCE Instruments
The PCE-2000N durometer uses the Leeb rebound method. This is a dynamic hardness test method in which a standardized test specimen, usually a hard metal ball, is hit with defined impact energy on a test surface. The impact of the hard metal ball on the test surface results in a plastic deformation of the surface at the point of impact. From this deformation results in an energy loss, which is proportional to the workpiece hardness and can be determined by the ratio of rebound to impact velocity of the specimen.
Features
- Measures all common hardness parameters
- External impact device on 1.5 m / 4.9 ft cable
- Large measuring range
- High precision
- Color display
Technical specifications
| Hardness type | Leeb | |
| Hardness value | HB, HLD, HRA, HRB, HRC, HS, HV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90241040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
