PCE-950 | PCE Instruments
PCE-950 Hardness Tester
Order No.: 31K0165
EAN: 4250348717047
MPN:
PCE-950
Unit Price (€ / pc.)
1,371.8439 € *
Available: 0 pcs.
Available in 4 Days: 3 pcs.
Leadtime: 9 Weeks **
Total Price:
1,371.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,371.8439 €
NDT Test Instruments, PCE-950, PCE Instruments

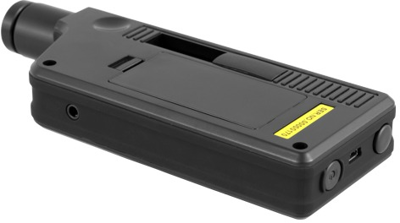

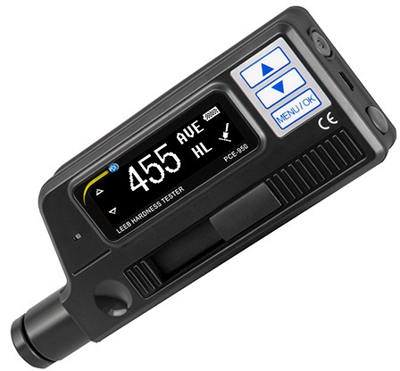

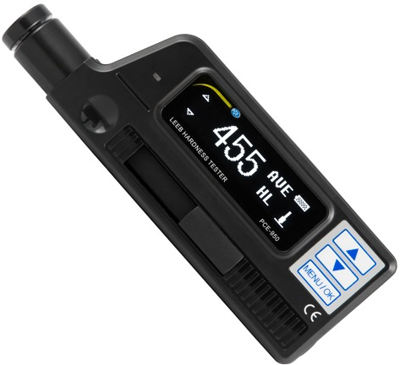

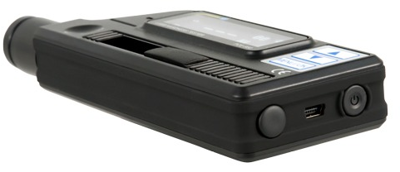

PCE-950 is a handheld metal hardness tester used to determine the hardness of 10 different types of metal (i.e., cast steel, hammered steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and forged copper alloy) according to the Leeb rebound method. In addition to Leeb hardness units (HL), the metal hardness tester displays hardness measurements in Rockwell C, Rockwell B, Rockwell A, Brinell, Vickers and Shore hardness units. In this dynamic hardness testing method, a small carbide ball hits the test surface. The quotient of rebound and impact velocity is directly related to the material hardness and can be converted into different hardness scales (i.e., HRC, HRB, HRA, HB, HV and HS).
Features

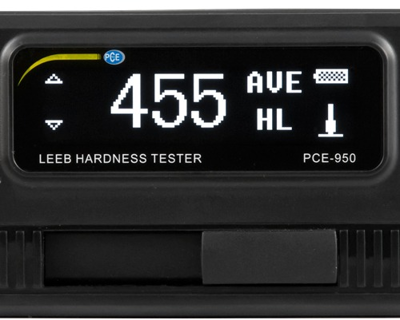

- Hardness units: HL, HRC, HRB, HRA, HB, HV, HS
- Data memory for saving up to 600 readings
- Automatic shutdown and alarm functionality
- For use with hammered steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and forged copper alloy metals
Technical specifications
| Hardness type | Rockwell (HRA, HRB or HRC), Brinell (HB), Vickers (HV), Shore (HS) or Leeb (HLD) | |
| Hardness value | HB, HLD, HRA, HRB, HRC, HS, HV |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90241040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
