PCE-PIC 40 | PCE Instruments

Video endoscope, LCD, 720 x 576 pixel, PCE Instruments, PCE-PIC 40

Order No.: 31K0660
EAN: 4250348719324
MPN:
PCE-PIC 40
PCE-PIC 40 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 1
PCE-PIC 40 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 2
PCE-PIC 40 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 3
Image may differ
Unit Price (€ / pc.)
2,169.3581 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
2,169.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,169.3581 €

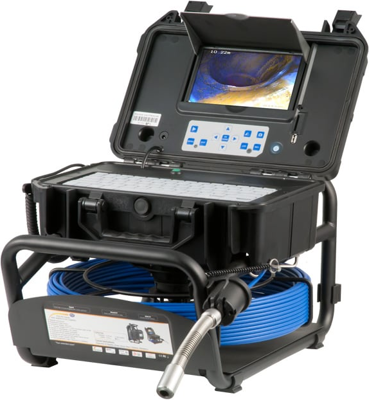

Inspection camera, PCE-PIC 40, PCE Instruments

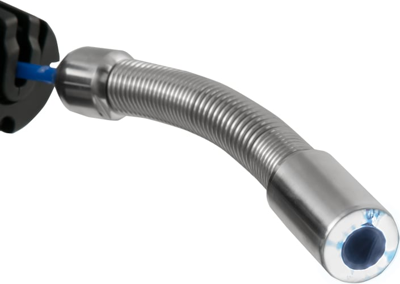

The inspection camera is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The inspection camera has a 23 mm / 0.9 in camera head, which is attached to a fiberglass push cable. The inspection camera is optimally suited for pipes and ducts DN 40 - 150 mm / 1.6 - 5.9 in. The camera of the inspection camera is waterproof up to 20 m / 66 ft. To facilitate the search for damaged areas on canals and pipes, the inspection camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the inspection camera. For better documentation, comments can be added to the pictures and videos via the keyboard.

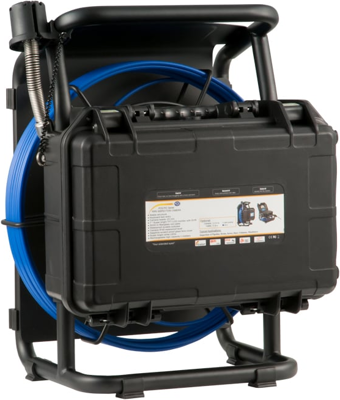

The inspection camera is delivered in a waterproof case. The case of the inspection camera is mounted directly on the cable roller. Thus, the inspection camera takes up little space during transport. The inspection camera PCE-PIC is equipped with a rechargeable battery, which enables a mobile working. About a power supply or the car charger, the battery of the inspection camera is charged.

Features

  • Electronic meter counting
  • Keyboard for comment input
  • Braked endoscope line
  • Battery and mains operation, A/C power adapter
  • IP66 Carrying Case

Scope of delivery

  • 1 x video endoscope especially for tubes PCE-PIC 40
  • 1 x Standardkamerakopf
  • 1 x main unit with case
  • 1 x cable reel and push cable
  • 1 x power supply unit 12V / 1.5A
  • 1 x 12 V car charging adapter
  • 1 x keyboard
  • 1 x remote control
  • 1 x 46 mm guide aid
  • 1 x 80 mm guide aid
Technical specifications
Resolution 720 x 576 Pixel
Version LCD
illuminated Yes
Product type Videoendoskop
Interfaces USB
Logistics
Country of origin CN
Customs tariff number 85258900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
