PCE-VE 100N4 | PCE Instruments

Video endoscope, 1280 x 720 pixel, PCE Instruments, PCE-VE 100N4

Order No.: 31K0822
EAN: 4250348723352
MPN:
PCE-VE 100N4

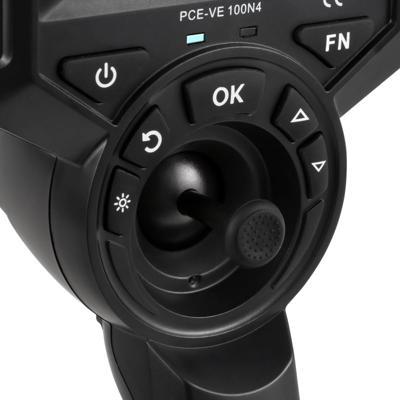

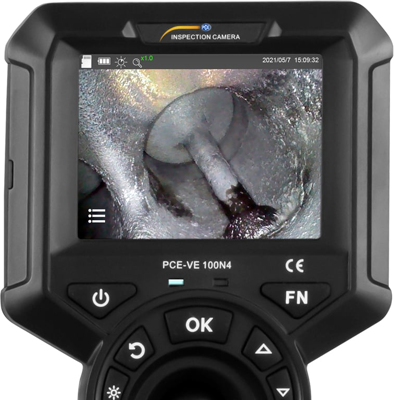

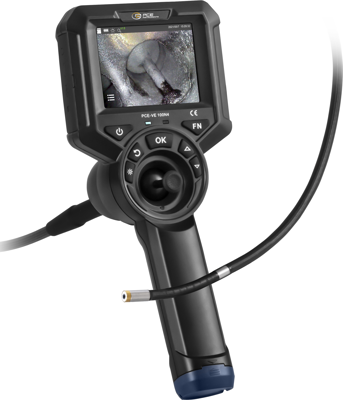

PCE-VE 100N4 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 1
PCE-VE 100N4 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 2
PCE-VE 100N4 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 3
PCE-VE 100N4 PCE Instruments Microscopes, inspection cameras, light sources, accessories Image 4
Image may differ
Unit Price (€ / pc.)
1,463.1764 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,463.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,463.1764 €

Video endoscope, PCE-VE 100N4, PCE Instruments

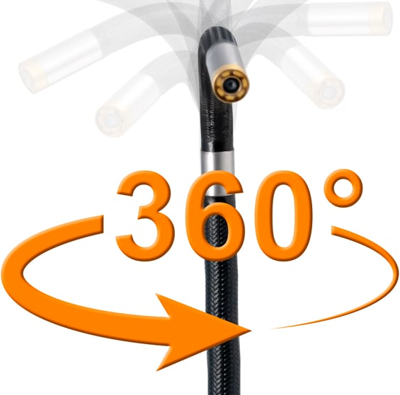

The 4-way (360°) video endoscope with a cable length of one metre and a camera head diameter of 6 mm is the ideal tool for endoscopy. The LED illuminance on the camera head can be adjusted in 5 stages up to 25.000 lux. This ensures that the test specimen is sufficiently illuminated. With the mini-HDMI interface on the 4-way (360°) video endoscope, the image can be transmitted to an external monitor or projector. The 4-way (360°) video endoscope is therefore used in vehicle workshops, heating and air conditioning technology, vocational schools, universities and other educational establishments.

Both photos and videos can be recorded with the 4-way video endoscope. The recordings are stored directly on the micro SD card and can be displayed on the 4-way video endoscope. It is also possible to transfer the recordings from the micro SD card to a computer. This means that the recordings from the 4-way video endoscope can be stored in reports of expertises, for example. The 3500 mAh battery enables an operating time of more than 3 hours before it needs to be recharged. To recharge the battery, the 4-way video endoscope can be connected to any 5 V USB port.

Scope of delivery

  • 1 x 4-way (360°) video endoscope PCE-VE 100N4
  • 1 x 3.7 V 18650 battery
  • 1 x Micro-USB cable
  • 1 x USB mains adapter DC 5 V, 2 A
  • 1 x micro SD memory card
  • 1 x Micro-SD card adapter
  • 1 x Carrying case
  • 1 x screwdriver
Technical specifications
Filter Property Value
Interfaces Mini-HDMI/Micro-USB
Resolution 1280 x 720 pixel
illuminated Yes
Product type video endoscope
Logistics
Property Value
Country of origin CN
Customs tariff number 85258900
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
