PCE-VE 1500-60200 | PCE Instruments

Videoscope, PCE-VE 1500-60200, PCE Instruments

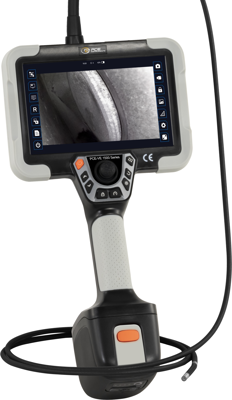

The high-resolution videoscope is ideal for checking components that are difficult to access. Due to the materials used, the practical design and the extensive marking and commenting functions, the mobile industrial endoscope can also be used for particularly demanding tasks. With the IP protection class IP 67, the boroscope can also be used for examinations in very dusty environments. Due to the high degree of protection, even immersion in water, salt water or oil for up to 30 minutes does not damage the industrial endoscope.

Possible areas of application for this videoscope include, for example, quality assurance in the manufacture of functional or safety-relevant components in machine, plant and vehicle construction. But the industrial endoscope is not only versatile for the visual inspection of new components, but also for inspections during scheduled and unscheduled maintenance or for building inspections. In addition, many meaningful investigations can be carried out almost non-destructively with the boroscope after accidents, abnormalities or malfunctions.

Features

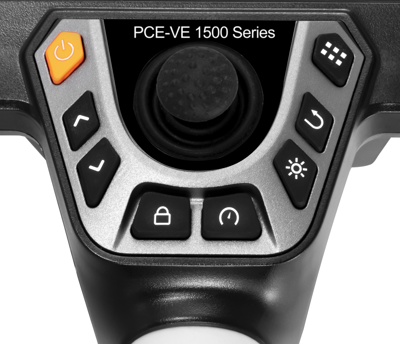

• Motorized 360° 4-way articulation with joystick
• Adjustable lighting of the camera field of view
• 7 inch touch screen
• 8x digital zoom
• Image can be rotated and mirrored on the display
• Picture in picture function to compare details
• Marking and labeling functions
• Storage format for images JPG, for videos MP4
• Report function with images and captions as PDF

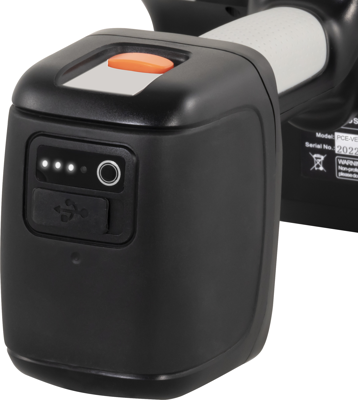

• With two rechargeable batteries that can be charged via the mains unit

Scope of delivery

• 1 x Video endoscope PCE-VE 1500-60200
• 2 x 7.4 V, 6400 mAh battery
• 1 x power supply unit 5 V, 3 A/9 V, 3 A/12 V, 3 A/15 V, 3 A/20 V, 3.25 A
• 1 x 64 GB memory card
• 1 x USB-C cable
• 1 x HDMI to mini-HDMI cable
• 1 x SD card reader
• 1 x Carrying case
