Panel meter, PCE-DPD-U, PCE Instruments

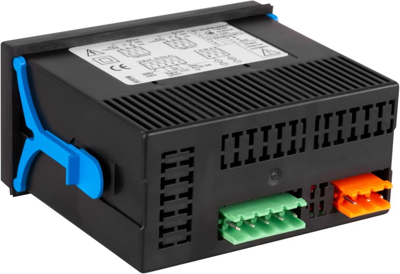

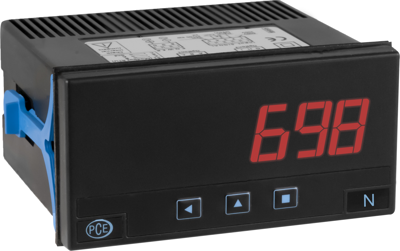

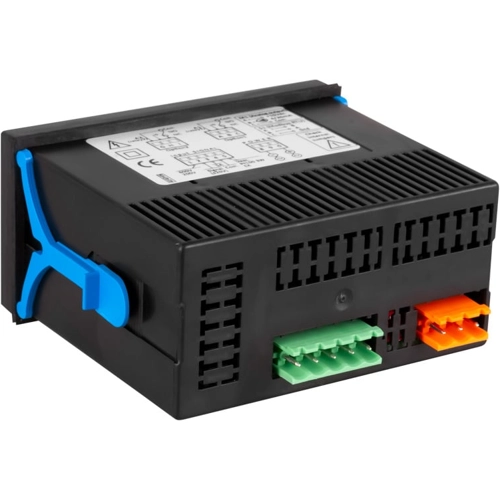

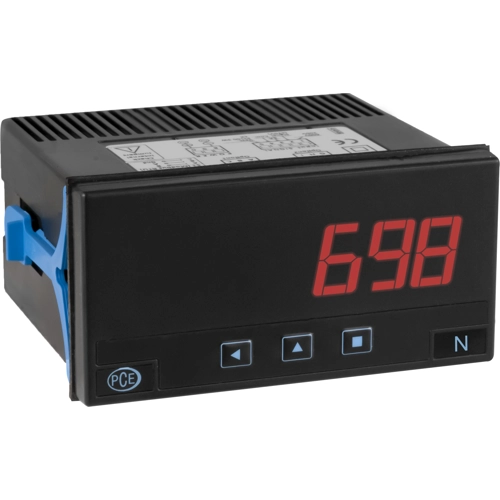

The multi-signal digital panel meter is configurable to work as voltmeter, ammeter, process signals (mA) with and without excitation voltage, temperature, resistors, potentiometers and frequencies. The digital panel meter has a size of 96 x 48 mm and displays the values on a 4-digit LED display. The measurement range is 9999 to -1999 with selectable decimal point. The meter has quick access to alarms setpoint, external contact for special functions, Eco mode of reduced consumption, 5 brightness levels. The supply voltage of the multi-signal digital panel meter from 18 to 265V AC / DC. Optionally the meter can have relay output, analog output and Modbus RTU communications.
Features
- Different units possible
- Digital display for industrial processes
- 4-digit digital display
Scope of delivery
- 1 x PCE-DPD-U installation display
- 2 x clamps
Width of cut-out | 96 mm | |
Installation depth | 91 mm | |
Frequency measurement | No | |
Height of cut-out | 48 mm | |
Control Output | Yes | |
Degree of protection (IP) | IP65 | |
Voltage | 18-265 V AC/DC |
Country of origin | ES |
Customs tariff number | 90318080 |
RoHS conform | in_review |
SVHC free | not_specified |
