Universal Controller PCE-RE100P

Order No.: 31K0261
EAN: 4250348722058
MPN:
PCE-RE100P
PCE Instruments

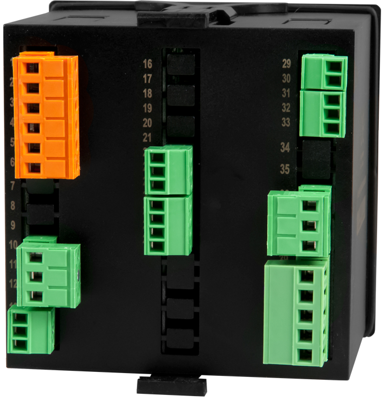

PCE-RE100P PCE Instruments Multifunction Measuring Devices and Multifunction Displays Image 1

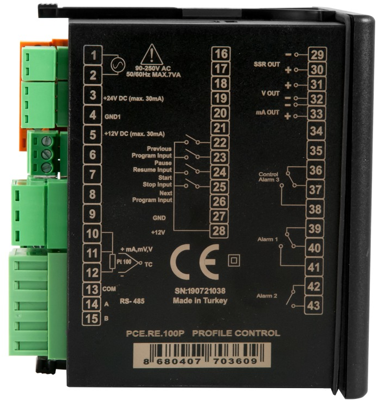

PCE-RE100P PCE Instruments Multifunction Measuring Devices and Multifunction Displays Image 2

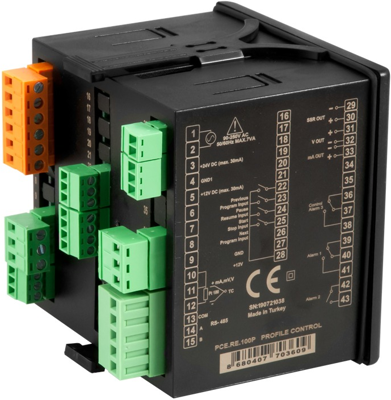

PCE-RE100P PCE Instruments Multifunction Measuring Devices and Multifunction Displays Image 3

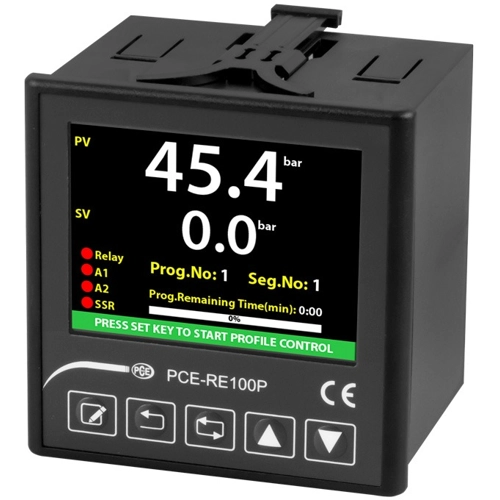

PCE-RE100P PCE Instruments Multifunction Measuring Devices and Multifunction Displays Image 4
Image may differ
Unit Price (€ / pc.)
370.9944 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
370.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
370.9944 €

Temperature controller, PCE-RE100P, PCE Instruments

The process controller is used for temperature and process control. The various inputs and outputs, which are installed as standard on the PID controller, make it possible for the PID controller to be used universally. The universal controller is equipped with a program control. In the universal controller up to 16 programs with 8 segments each can be set. Via the four digital inputs, the respective control programs can be started and stopped, as well as paused and resumed. Likewise it can be switched between the programs.

The PID controller is equipped with a universal input to which various temperature sensors and sensors with process signal output can be connected. The large LCD display continuously informs about set points and actual values, as well as about the states of the outputs and the respective control programs. The controller is equipped with an RS485 Modbus interface for connection to a process control system.

Features

  • Universal input
  • Adjustable program control
  • 3.5" LCD display
  • Relay, SSR and analog output
  • 50 ms sampling rate
  • Autotune PID
  • Memory for several PID parameters
  • RS485 Modbus interface
Technical specifications
Width of cut-out 96 mm
Installation depth 81 mm
Frequency measurement No
Height of cut-out 96 mm
Max. current 20 mA
Control Output Yes
Degree of protection (IP) IP65/IP20
Voltage 90-250 VAC
Temperature measurement RS485 modbus RTU
Logistics
Country of origin TR
Customs tariff number 90318080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
