PCE-BDM 20 | PCE Instruments
Digital multimeter PCE-BDM 20, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 6 nF to 60 mF
Order No.: 31K0094
EAN: 4250348720238
MPN:
PCE-BDM 20
Unit Price (€ / pc.)
491.3153 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

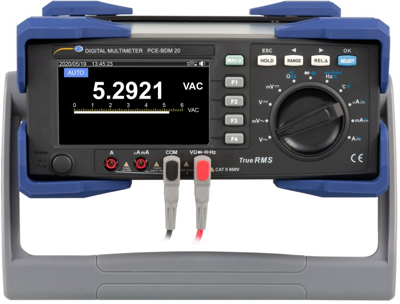

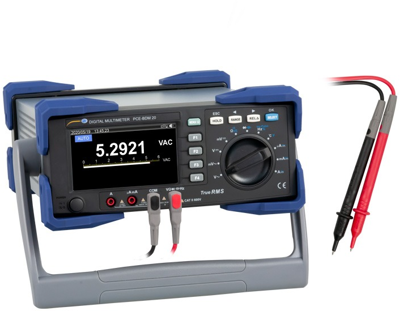

Digital multimeter, PCE-BDM 20, PCE Instruments

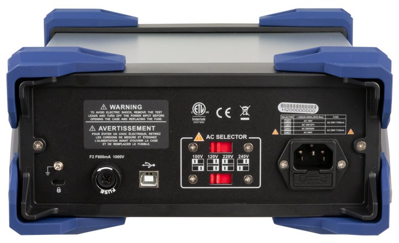

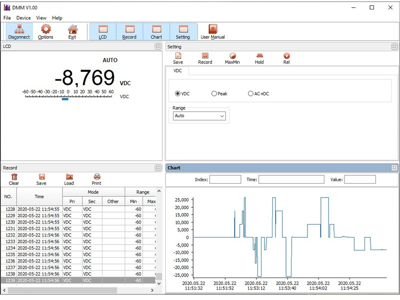

The digital multimeter is a multimeter for a stationary workplace. In addition to measuring current, voltage and resistance, the digital multimeter can also use two thermocouples to measure the temperature and also determine the conductivity. So the digital multimeter can perform a variety of different measurement tasks. A direct connection to a PC can be established via the USB interface on the back of the digital multimeter. The software from the digital multimeter can then be used to carry out live analyzes using graphics and tables.
Features
- Table multimeter with reinforced housing
- USB interface for PC connection
- PASS / FAIL function for quality control
- Extensive measuring functions
- Temperature measurement
- Easy to use
- Graphic display of the measurement signal
- Memory function
Technical specifications
| Version | digital multimeter | |
| Capacity range | 6 nF to 60 mF | |
| max. measured current value (AC) | 10 A | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 60 MΩ | |
| max. voltage measuring range (AC) | 1000 V | |
| max. voltage measuring range (DC) | 1000 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
