PCE-LES 500 | PCE Instruments

Portable LED stroboscope PCE-LES 500

Order No.: 31K0571
EAN: 4250348734303
MPN:
PCE-LES 500
PCE-LES 500 PCE Instruments Rotational Speed Image 1
PCE-LES 500 PCE Instruments Rotational Speed Image 2
PCE-LES 500 PCE Instruments Rotational Speed Image 3
PCE-LES 500 PCE Instruments Rotational Speed Image 4
Image may differ
Unit Price (€ / pc.)
4,344.2735 € *
Available: 0 pcs.
Available in 4 Days: 2 pcs.
Leadtime: 9 Weeks **
Total Price:
4,344.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4,344.2735 €

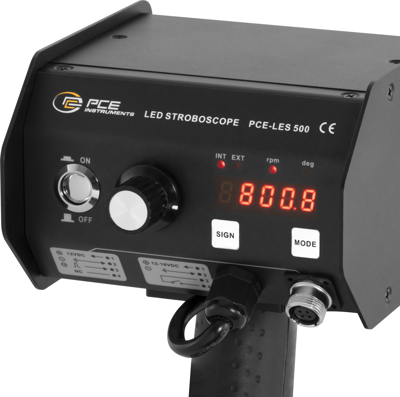

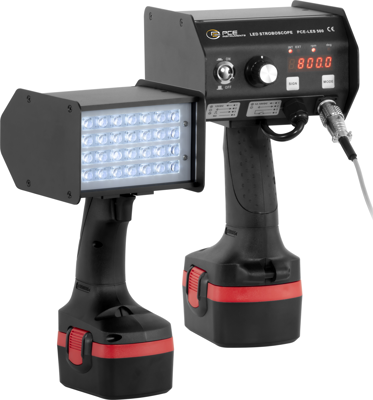

Portable LED stroboscope, PCE-LES 500, PCE Instruments

The extremely powerful portable LED stroboscope is unrivalled in terms of light intensity, operation and technology. This very robust and precise hand-held stroboscope is used for measurements in demanding industrial environments and is specially designed for maintenance, commissioning and inspection. The way it works is very simple: fast-moving parts are optically "frozen" and thus made visible to the human eye. In this way, defective components or sub-optimal settings can be detected and corrected during operation. With its wide measurement range of 50 to 50,000 FPM, it is versatile and offers precise measurements for a broad range of applications. Its compact size and low weight make it extremely handy and ensure that it can be taken anywhere. Equipped with 28 energy-saving and long-lasting LEDs as a light source, the portable LED stroboscope guarantees reliable performance and a long service life. With a resolution of 0.1 FPM and an accuracy of 0.01%, it delivers extremely precise measurement results that fulfil even the highest demands. It is used, for example, for measuring steel and aluminium coils, flat trajectories or other rotating objects.

Features

  • External trigger input
  • Ergonomic handle

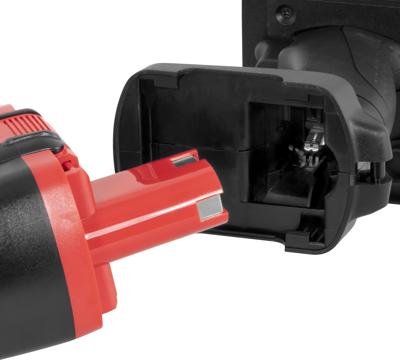

  • 2 removable rechargeable batteries
  • Measurement on coils and flat trajectories

Scope of delivery

  • 1 x Portable LED stroboscope PCE-LES 500
  • 1 x Ni-MH battery charger
  • 2 x Ni-MH 3000 mAh battery
  • 1 x 4-pole coupling
  • 1 x rubber grommet

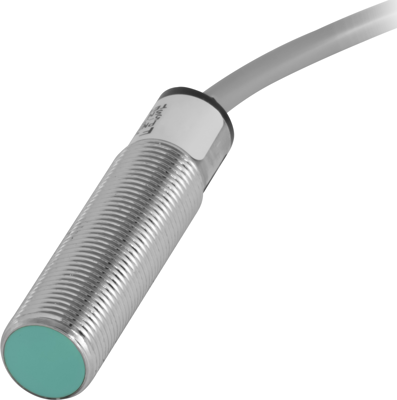

  • 1 x external trigger sensor
  • 1 x transport case
Technical specifications
Accuracy ±0,01 %
measurement range 50 bis 50000 FPM
Product type LED-Stroboskop
Logistics
Country of origin CN
Customs tariff number 90292090
Compliance
RoHS conform in_review
SVHC free not_specified
