PCE-SCI-D | PCE Instruments

Universal transmitter, PCE-SCI-D

Order No.: 31K0709
EAN: 4250348731623
MPN:
PCE-SCI-D

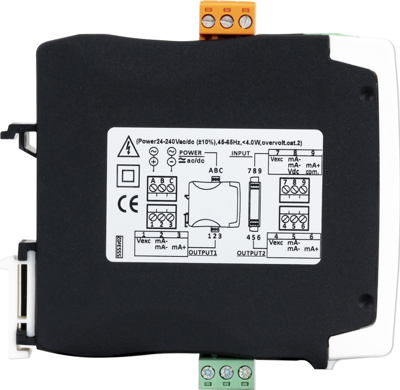

PCE-SCI-D PCE Instruments Signal Converters and Measuring Transducers Image 1

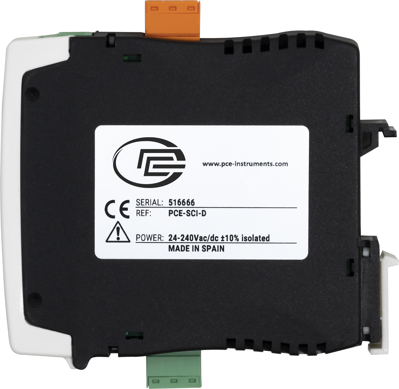

PCE-SCI-D PCE Instruments Signal Converters and Measuring Transducers Image 2

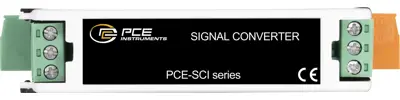

PCE-SCI-D PCE Instruments Signal Converters and Measuring Transducers Image 3

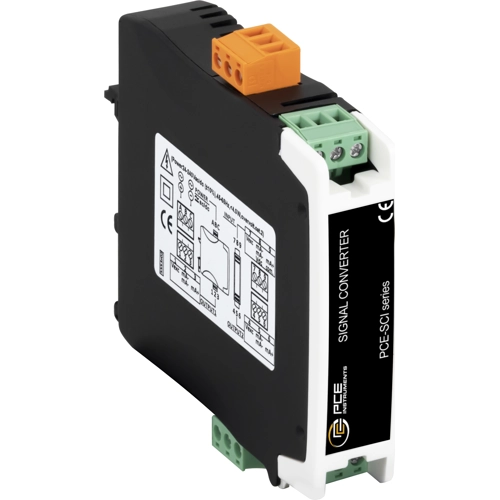

PCE-SCI-D PCE Instruments Signal Converters and Measuring Transducers Image 4
Image may differ
Unit Price (€ / pc.)
153.51 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
153.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
153.51 €

Universal measuring transducer, PCE-SCI-D, PCE Instruments

The configurable universal measuring transducer for electrical signals is a signal doubler and signal converter for process signals. Circuit isolation prevents ground loops and propagation of voltage spikes, protecting equipment and signal integrity.

The configurable universal transmitter for electrical signals is designed for industrial use, with the possibility of integration into a variety of applications, reduced costs, excellent quality and optional customization of the device for individual use.

Features

  • Duplicates analog signals
  • Quick configuration using 2 buttons
  • DIN rail mounting
  • Inputs and outputs galvanically isolated
Technical specifications
Product type Universalmessumformer
Version für elektrische Signale
measurement range 4-20 mA, 0-10 V
Signal output 2 x Analog
Length 110 mm
Width 22 mm
Height 118 mm
Weight 126 g
Logistics
Country of origin ES
Customs tariff number 90318080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
