Universal transmitter, PCE-SCI-E

Order No.: 31K0710
EAN: 4250348728340
MPN:
PCE-SCI-E

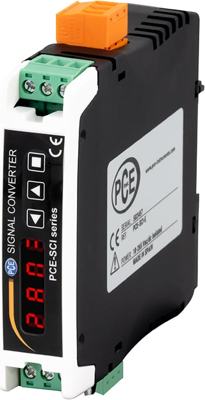

PCE-SCI-E PCE Instruments Signal Converters and Measuring Transducers Image 1

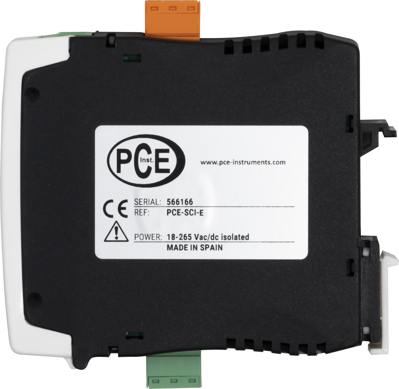

PCE-SCI-E PCE Instruments Signal Converters and Measuring Transducers Image 2

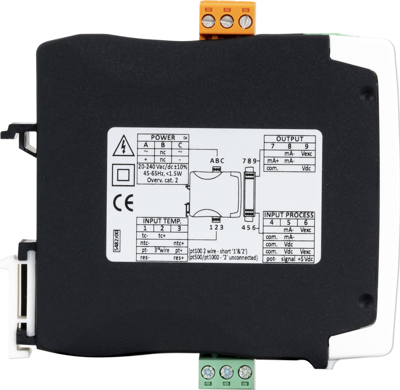

PCE-SCI-E PCE Instruments Signal Converters and Measuring Transducers Image 3
Image may differ
Unit Price (€ / pc.)
199.9200 € *
Available: 0 pcs.
Available in 4 Days: 1 pcs.
Leadtime: 9 Weeks **
Total Price:
199.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
199.9200 €

Universal measuring transducer, PCE-SCI-E, PCE Instruments

The transmitter has an adjustable measuring range of 0- 600 V AC/DC and can therefore measure a wide variety of voltages. In addition to voltage measurement, the transmitter can also measure the current directly with a maximum adjustable measuring range of 0 - 5 A AC/DC. A current transformer can be connected to the transmitter to expand the current range. Since the input and output range can be set identically, the transmitter can be used for galvanic decoupling.

Features

  • Active and passive output signal
  • Display and keypad for configuration
  • Frequency measurement
Technical specifications
Width 22.5 mm
Weight 150 g
Height 108 mm
Length 106 mm
measurement range 0-600 V AC/DC
Product type Universalmessumformer
Logistics
Country of origin ES
Customs tariff number 90318080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
