PCE-SCI-P | PCE Instruments

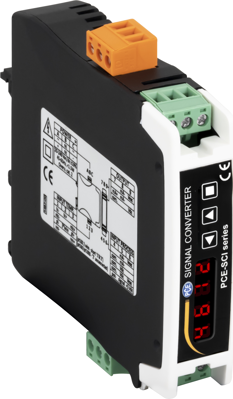

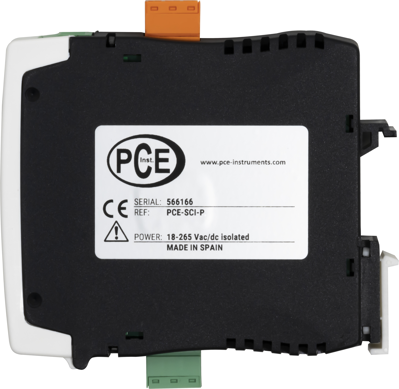

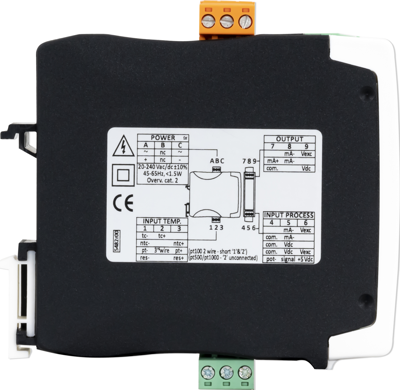

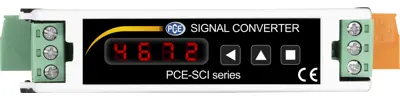

Universal transmitter, PCE-SCI-P
Order No.: 31K0712
EAN: 4250348734242
MPN:
PCE-SCI-P
Unit Price (€ / pc.)
199.9200 € *
Standard delivery time from the manufacturer is: 9 Weeks
Universal measuring transducer, PCE-SCI-P, PCE Instruments
Configurable Universal measuring transducer for process signals, temperatures, resistors and potentiometers. Offers a wide range of configuration options for converting signals. The output signal can be selected between 4 - 20 mA and 0 - 10 VDC can be selected. The configurable Universal measuring transducer has a universal power supply from 18 to 265 VAC/DC and 3-way insulation between input, output and current circuits. The Configurable Universal measuring transducer has a ‘password’ function to block unauthorised access to the configuration menu. It also has an ‘SOS’ mode to assist with critical maintenance and repair work without interfering with the manufacturing process.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 118 mm | |
| Width | 22 mm | |
| Version | 31 input options | |
| Weight | 130 g | |
| Product type | universal transmitter | |
| Length | 110 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
