PCE-DFG N 500 | PCE Instruments

Force gage, PCE-DFG N 500, PCE Instruments

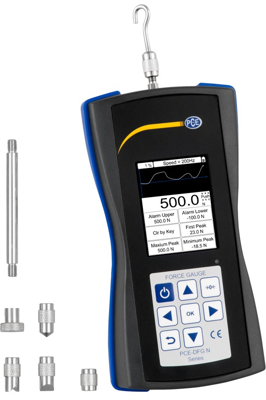

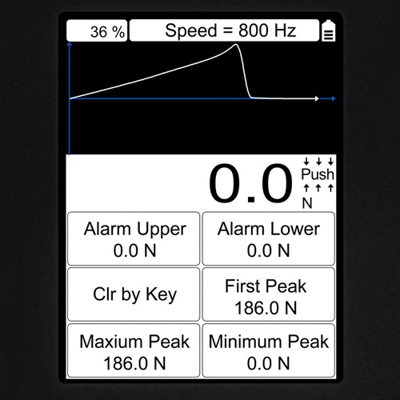

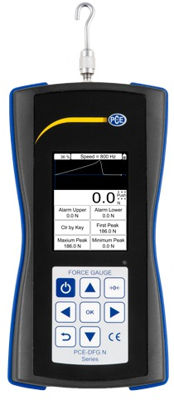

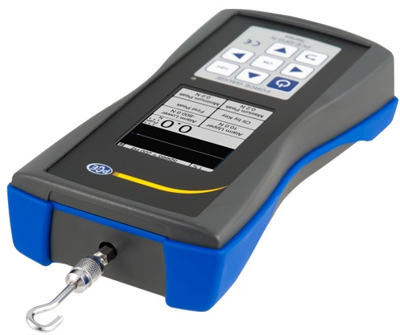

A digital force gage for tensile and compressive force measurements up to 500 N is available with the PCE-DFG N 500. The PCE-DFG N 500 is a digital force gage for precise measurements with a resolution of 0.1 N. The measured values ​​are displayed on a large, illuminated, 180° rotatable display, a correct reading of the measured values ​​is thus guaranteed at all times, with an outstanding accuracy of ± 0.1%. In addition to the internal storage option of 100 measured values, a USB interface is available for data transmission. With the software, the measured values ​​can be saved on a computer for later evaluation.

Features

• Pull and pressure force measurement
• 1600 Hz sampling rate
• PEAK function (MIN / MAX)
• Automatic or manual storage
• Automatic shutdown adjustable
• Save 100 readings
