PCE-FM 500N Force Gauge
Order No.: 31K0144
EAN: 4250348718419
MPN:
PCE-FM 500N
Unit Price (€ / pc.)
420.4746 € *
Available: 0 pcs.
Available in 4 Days: 19 pcs.
Leadtime: 9 Weeks **
Force gage, PCE-FM 500N, PCE Instruments

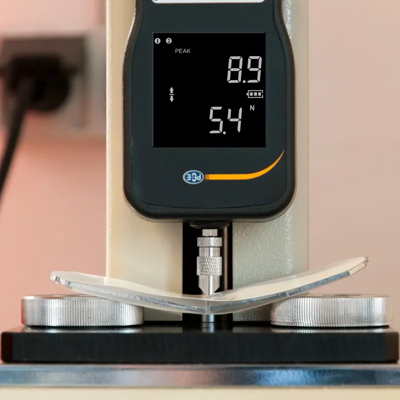

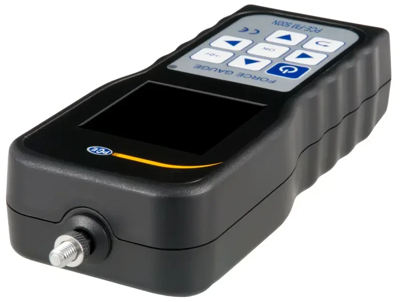

The PCE-FM 500N force gage is a microprocessor controlled dynamometer with fast and accurate readout of tensile and compressive forces in N, Kg and lb. The display of the force gage is easily readable by the large numbers. The force gage is equipped with an internal load cell for tensile and compression tests. The load cell of the force gage PCE-FM 500N is equipped with a M6 threaded head. Thus, the force gage can also be screwed into other brackets, test facilities and test stands and. The force gage is operated with an internal battery or the external power supply.
Features

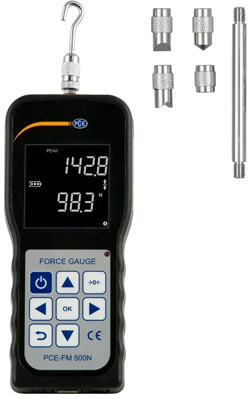

- Differently shaped measuring adapters
- Downloadable evaluation software
- Device for mounting on test stands
- Peak measurement
- Fast measured value display

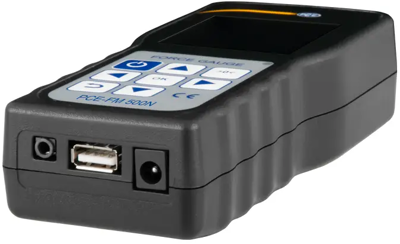

- Evaluation via USB interface
Technical specifications
| Product type | Dynamometer | |
| Version | für Kraftmessungen | |
| Force | 500 N | |
| measurement range | 0-500 N | |
| Readability | 0,1 N |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90318080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
