Inspection Camera PCE-TC 32N

Order No.: 31K0757
EAN: 4250348730503
MPN:
PCE-TC 32N

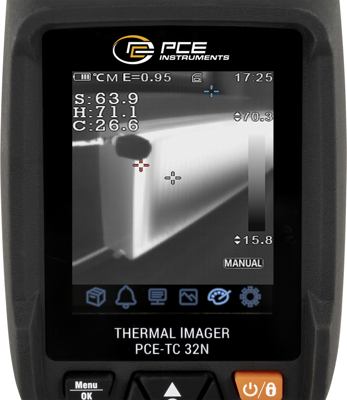

PCE-TC 32N PCE Instruments Thermal Imagers Image 1

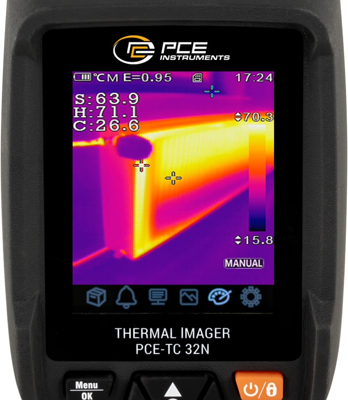

PCE-TC 32N PCE Instruments Thermal Imagers Image 2

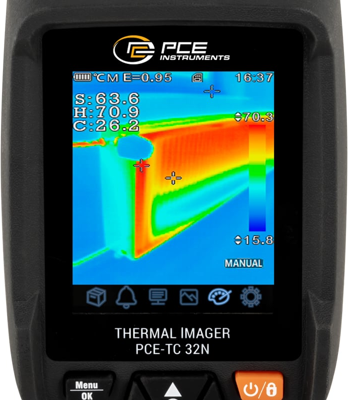

PCE-TC 32N PCE Instruments Thermal Imagers Image 3

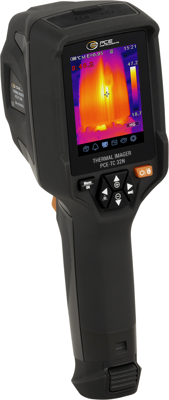

PCE-TC 32N PCE Instruments Thermal Imagers Image 4
Image may differ
Unit Price (€ / pc.)
881.5044 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
881.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
881.5044 €

Inspection camera, PCE-TC 32N, PCE Instruments

The inspection camera has a measuring range of -20 - +550 °C, this means that the inspection camera already covers a wide temperature range of measuring tasks. With an image frequency of 25 Hz, problems can be localised quickly with the inspection camera. The picture-in-picture function allows the real image to be displayed simultaneously with the thermal image. The app enables a clear display and operation of the inspection camera.

Features

  • Software for evaluating the recordings
  • Picture-in-picture function
  • Eight different thermal image representations
  • Video and photo recording
  • Optionally with ISO calibration certificate

Scope of delivery

  • 1 x thermal imaging camera PCE-TC 32N
  • 1 x USB-C cable
  • 1 x battery
  • 1 x software CD
  • 1 x 32 GB micro SD memory card including adapter
Technical specifications
Resolution 256 x 192 Pixel
Frame recording frequency 25 Hz
max. operating temperature 550 °C
min. operating temperature -20 °C
Field of View 50° x 37°
Logistics
Country of origin CN
Customs tariff number 90251900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
