PCE-TC 33N | PCE Instruments
Thermal imaging camera PCE-TC 33N
Order No.: 31K0254
EAN: 4250348720030
MPN:
PCE-TC 33N
Unit Price (€ / pc.)
865.7964 € *
Available: 0 pcs.
Available in 4 Days: 5 pcs.
Leadtime: 9 Weeks **

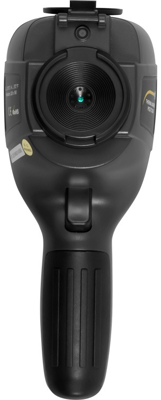

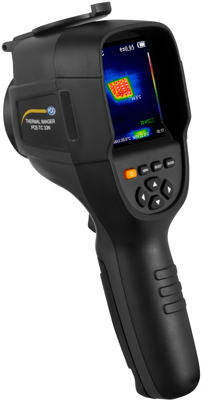

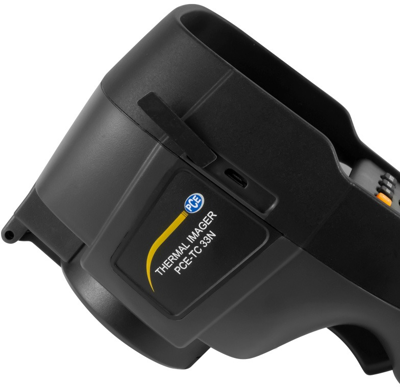

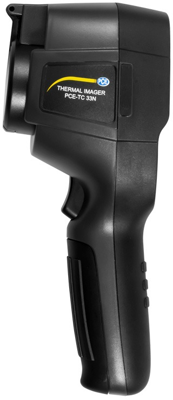

Thermal imaging camera, PCE-TC 33N, PCE Instruments
The thermal imaging camera PCE-TC 33N is the ideal tool for repair work and prevention measures. This thermal imager is a must-have for electricians, fire fighters, locksmiths, or general service personnel for trouble shooting and fault prevention on electrical equipment, electromechanical equipment, production process machinery, heating, ventilation, and air conditioning systems, especially when working in harsh environments.
Features
- IR resolution: 220 x 160 pixels
- Measuring range: -20 ... 300°C / -4 ... 572°F
- Thermal sensitivity: 70 mK
- Memory: 3 GB memory for more than 20,000 pictures
- 5 different color palettes

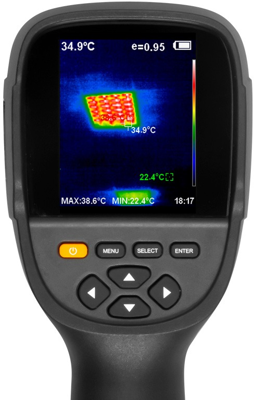

- Hot and cold point location
- Picture in Picture function
Technical specifications
| Resolution | 220 x 160 pixel | |
| Frame recording frequency | 9 Hz | |
| Minimum Focus Distance | 0.15 m | |
| max. operating temperature | 300 °C | |
| min. operating temperature | -20 °C | |
| Field of View | 35° x 26° |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90251900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
