PCE-TC 34N | PCE Instruments

Thermometer PCE-TC 34N

Order No.: 31K0758
EAN: 4250348730305
MPN:
PCE-TC 34N

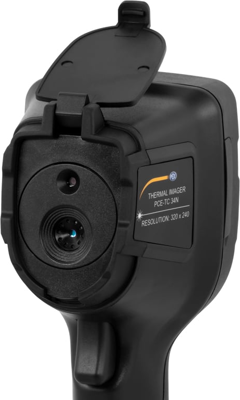

PCE-TC 34N PCE Instruments Thermal Imagers Image 1

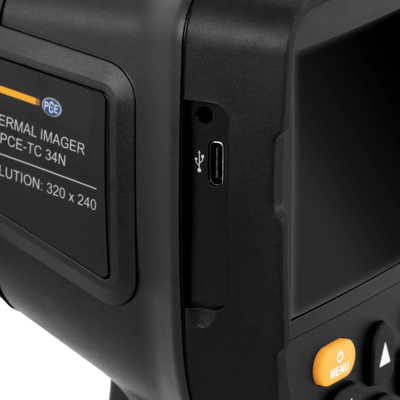

PCE-TC 34N PCE Instruments Thermal Imagers Image 2

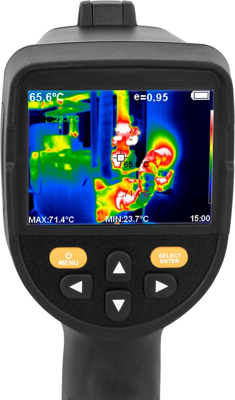

PCE-TC 34N PCE Instruments Thermal Imagers Image 3

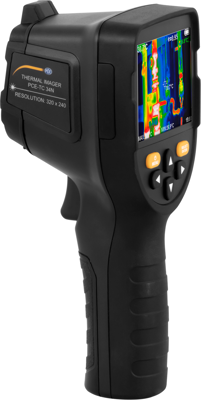

PCE-TC 34N PCE Instruments Thermal Imagers Image 4
Image may differ
Unit Price (€ / pc.)
1,000.5639 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1,000.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,000.5639 €

Thermometer, PCE-TC 34N, PCE Instruments

The thermometer has a resolution of 320 x 240 pixels. With a measuring range of -20 - 300 °C, the thermometer already covers a large temperature range. During the measurement, the coldest and the hottest temperature of the surface at which the thermometer is pointed are displayed in addition to the spot temperature. For a better analysis of the temperature, the thermal image displayed on the thermometer can be displayed in five different color palettes: rainbow, iron, cold colors, white-black (+inverted).

The battery can be recharged by the thermometer via the USB-C interface. In addition, the recorded images can be transferred from the thermometer to any PC. When connected to a PC, the thermometer is recognized as a mass data storage medium. Thus, the recorded thermal images can be transmitted independently of the operating system.

Features

  • Storage for about 20,000 images
  • Picture in picture function
  • USB-C interface for transmission
  • Different color palettes
  • Removable 18650 battery
  • Automatic shutdown

Scope of delivery

  • 1 x thermal imaging camera PCE-TC 34N
  • 1 x USB-C cable
  • 1 x USB charging plug
  • 1 x Carrying case
Technical specifications
Resolution 320 x 240 Pixel
Frame recording frequency 9 Hz
max. operating temperature 300 °C
min. operating temperature -20 °C
Field of View 35° x 26°
Logistics
Country of origin CN
Customs tariff number 90251900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
