PCE-EMD 5 | PCE Instruments

PCE Instruments hygrometer, PCE-EMD 5

Order No.: 31K0482
EAN: 4250348728449
MPN:
PCE-EMD 5
PCE-EMD 5 PCE Instruments Thermometers and Displays Image 1
PCE-EMD 5 PCE Instruments Thermometers and Displays Image 2
PCE-EMD 5 PCE Instruments Thermometers and Displays Image 3
PCE-EMD 5 PCE Instruments Thermometers and Displays Image 4
Image may differ
Unit Price (€ / pc.)
724.2697 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
724.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
724.2697 €

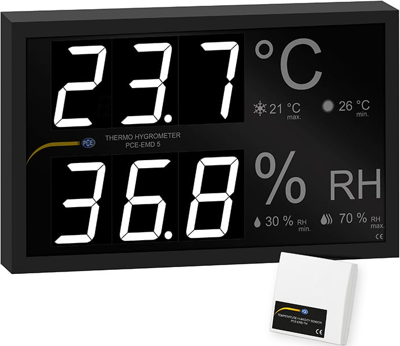

Hygrometer, PCE-EMD 5, PCE Instruments

The thermometer can be connected to up to four external temperature and humidity modules. The temperature measuring range for the sensors of the thermo-hygrometer is 0.0 … 50.0 °C and the humidity measuring range is 0.0 … 99.9% RH. The power supply of the thermo-hygrometer is via a mains connection of 110-220 V AC. The integrated sensor supply can supply the connected sensors from the thermo-hygrometer with 12 or 24 V DC. As soon as the sensors are connected, they are automatically recognized by the thermometer. The communication between the sensor modules and the thermo-hygrometer takes place via an analog 4 … 20 mA signal. If several sensors are connected, the average reading of all sensors is displayed on the thermo-hygrometer.

Thus, the thermo-hygrometer is used, for example, in event halls, restaurants or in public buildings to monitor the ambient conditions. Both the thermometer and the sensor module are mounted on a wall. If necessary, the thermo-hygrometer can be mounted on a monitor bracket with the mounting dimensions 75 x 75 mm (2.95 x 2.95"). This allows the thermo-hygrometer to be ideally aligned. The thermo-hygrometer can optionally be equipped with an ISO calibration certificate.

Scope of delivery

  • 1 x PCE-EMD 5 temperature and humidity display

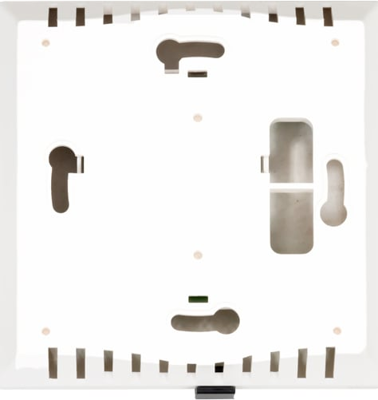

  • 2 x wall mounting bracket

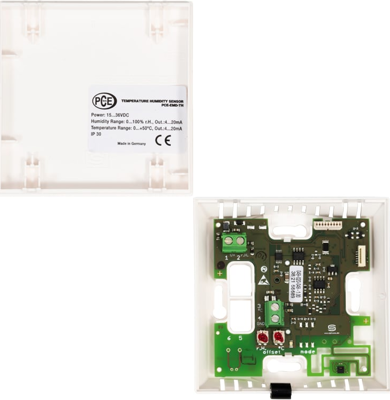

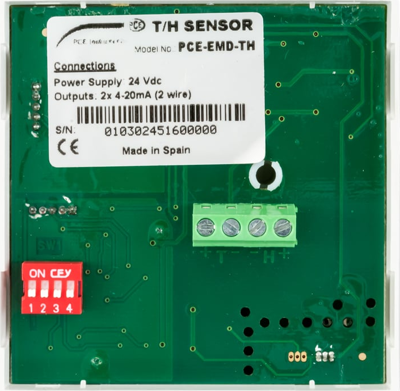

  • 1 x sensor module PCE-EMD-TH
Technical specifications
Resolution 0,1 °C
Accuracy ±0,5 °C
max. operating temperature 50 °C
min. operating temperature 0 °C
Product type Hygrometer
Response Time 15 s
Relative Humidity Range 0 bis 99,9 %
Logistics
Country of origin ES
Customs tariff number 90319000
Compliance
RoHS conform in_review
SVHC free not_specified
