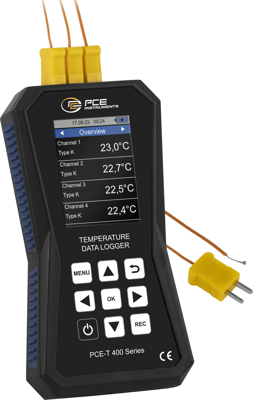

PCE Instruments 4 channel thermometer, PCE-T 420
Condition monitoring thermometer, PCE-T 420, PCE Instruments
The 4-channel thermometer for thermocouples allows for the display and archiving of multiple temperature sensors simultaneously. It can be connected to up to 8 different types of thermocouples. The measurement overview of the 4-channel thermometer provides a quick overview of the 4 displayed temperatures. The 4-channel thermometer can store up to 100 data sets, each with a maximum of 100,000 readings.
The 4-channel thermometer for thermocouples is well-suited for areas where temperature monitoring is critical. Possible applications include furnace inspections, temperature-sensitive component development processes, or laboratory experiments. For the temperature data logger, we offer a wide range of thermocouple probes, which can be found in the accessories section.
Features
- Compatibility with 8 thermocouple types
- Storage for 10 million measurement values
- Adjustable alarm limits
- 4 input channels
Scope of delivery
- 1 x 4-channel temperature data logger for thermocouples PCE-T 420

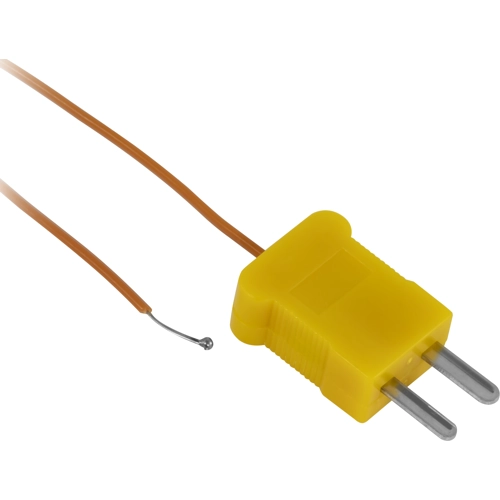

- 4 x K-type wire sensors (TF-500)

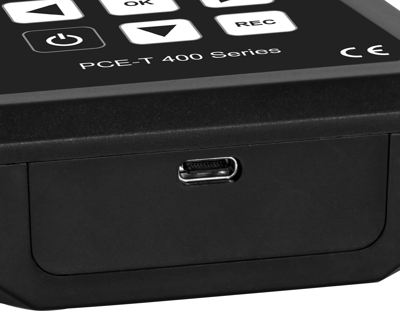

- 1 x USB C cable
- 1 x USB stick with instructions and PC software
- 1 x device bag
- 1 x Quickstart Guide
Resolution | 0,1 °C | |
max. operating temperature | 1800 °C | |
min. operating temperature | -200 °C | |
Product type | 4-Kanal-Thermometer |
Country of origin | DE |
Customs tariff number | 90251900 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
